| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 5t~60t, Customized | Span: | 9m~12m, Customized |
|---|---|---|---|
| Lifting Height: | 9m~35m, Customized | Application: | Workshops, Factories, Indoor & Outdoor |
| Working Duty: | A5-A7 | Working Radius: | 8.5m~30m |
| Power Source: | 3 Phase 380V 50hz | Color: | Customer Requirements |
| Control Method: | Wireless Remote, Cabin Control, Pendent Button | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 300t Shipyard Port Cranes,8.5m Shipyard Port Cranes,Door Base Boom Lift Crane |
||

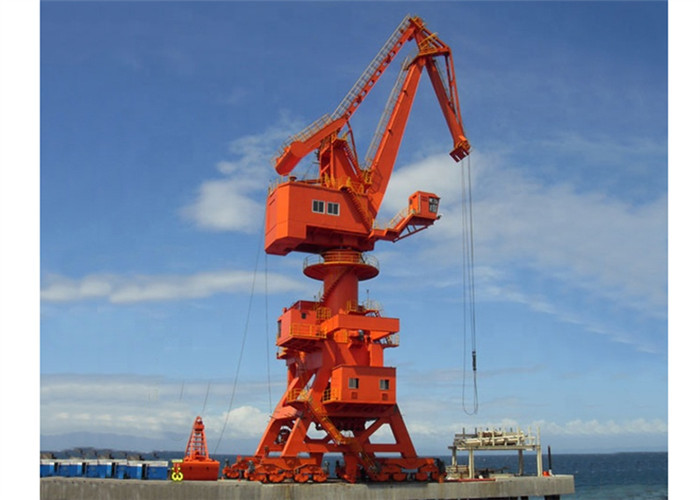

Shipyard Port Four-Link Door Base Boom Crane Container Crane For Sale 300t
Product Description
Shipyard Quayside Harbor Mobile Double Portal Jib Crane 300t applications are: loading and unloading at port, material handling at dockyard, ship building and repairing yard, metallurgy industry. They mainly include lifting mechanism, luffing mechanism, slewing mechanism, travelling mechanism, spreader device (grab, container, and hook), electrical equipment and other aiding devices for safety. The applied rigid rack and screw lever luffing mechanism make sure a constant working state.
Drawing and Specification
| Spreader type | Hook | Grab | |
| Material handling | various goods | bulk cargo | |
| Capacity (under spreader) | 5.0 ～ 60ton | 5.0 ～ 50ton | |
| Lifting height | Above rail | 15 ～ 35m | 15 ～ 35m |
| Under rail | 9 ～ 20m | 9 ～ 18m | |
| Work Grade | A5, A6, A7, A8 | A5, A6, A7, A8 | |
| Outreach | 15 ～ 50m | 15 ～ 50m | |
| Span | 9.0 ～12m | 9.0 ～12m | |
| Standard Speeds | Hoisting with load | 10 ～ 25 m/min | 10 ～ 25 m/min |
| Hoisting without load | 15 ～ 35 m/min | 15 ～ 35 m/min | |
| Luffing | 15 ～ 55m/min | 15 ～ 55m/min | |
| Slewing | 0.8 ～ 2.0 r/min | 0.8 ～ 2.0 r/min | |
| Gantry travel | 20 ～ 30 m/min | 20 ～ 30 m/min | |
Features
1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
7. Designed according to your request.
Product Details
Application
Package and Delivery
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
