CXTS 16 Ton Single Beam Bridge Crane European Standard

Basic Information
Place of Origin: Henan, China
Brand Name: Magicart
Certification: CE, ISO, SGS, GOST, BV
Model Number: CXTS
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: High quality plywood crate and plastic woven cloth
Delivery Time: According to customer needs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 sets per year
Detail Information
Load Capacity: 1-16t, Customized Span: 7.5-32m, Customized
Lifting Height: 3- 25m, Customized Lifting Speed: 20m/min 30m/min Or Can Be Customized
Power: 3P 220--440 V/50hz60HZ Color: Clients' Requirments
Sling Type: Wire Rope Application: Workshop, Plants, Warehouse, Factory, Etc.
Applicable Industries: Manufacturing Plant After-sales Service Provided: Video Technical Support And So On
Highlight:

CXTS 16 Ton Single Beam Bridge

,

European Single Beam Bridge Crane

,

16T cxts single girder crane


Product Description

Newest Design European Single Beam Bridge Overhead Crane European Standard



Product Description



Electric European hoist Overhead Crane is a single girder overhead crane developed by Kinocranes with New Zealand advanced crane design concept and technology, confirming with international standards, i.e. DIN, FEM and ISO. Electric hoist overhead crane as a specially designed material handling equipment has the advantages of high rigidity, light dead weight, and outstanding design,etc.

Electric hoist overhead European crane system can save working space of your factory and save your investment cost, which will be your optimal choice.





​​Drawing and Specification



CXTS 16 Ton Single Beam Bridge Crane European Standard 0

Load Capacity (ton)

Span /Rail Gauge (m)

Max. Lifting height (m)

Duty Class

1

5~35

3~25

A5 or A3

3

5~35

3~25

A5 or A3

5

5~35

3~25

A5 or A3

10

5~35

3~25

A5 or A3

12.5

5~35

3~25

A5 or A3

15

5~35

3~25

A3

16

5~35

3~25

A3

Customizable

Customizable

Customizable

Customizable





Features



1.Optimized European design, light dead weight.
2.Small wheel load pressure, and compacted size.
3.Good driving capacity, double lifting speed.
4.Frequency control of trolley and crane.
5.Smooth and stable travelling.





Main parts



CXTS 16 Ton Single Beam Bridge Crane European Standard 1





CXTS 16 Ton Single Beam Bridge Crane European Standard 2





Application

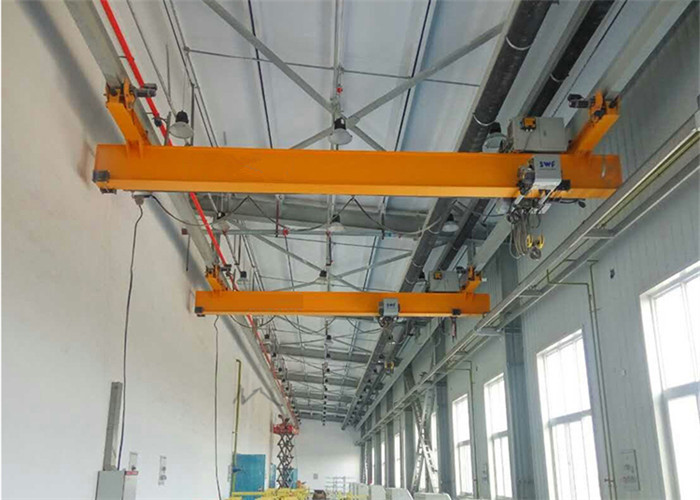

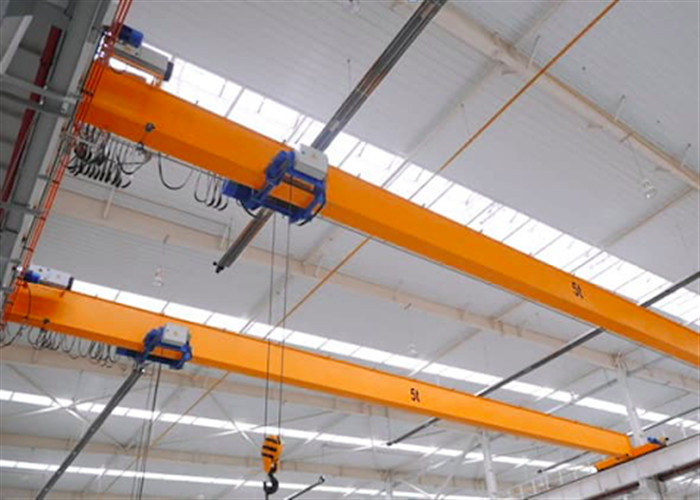

CXTS 16 Ton Single Beam Bridge Crane European Standard 3





Package and Delivery



CXTS 16 Ton Single Beam Bridge Crane European Standard 4

CXTS 16 Ton Single Beam Bridge Crane European Standard 5





CXTS 16 Ton Single Beam Bridge Crane European Standard 6

CXTS 16 Ton Single Beam Bridge Crane European Standard 7





FAQ



1. Q: What’s your MOQ?

A: 1 Set;



2. Q: What’s your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;



3. Q: What’s your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;



4. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.



5. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
