| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | LDP |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 10t, Customized | Span: | 10.5-31.5m, Customized |
|---|---|---|---|
| Lifting Height: | 6- 30m, Customized | Work Duty: | A3 And A4 |
| Lifting Speed: | 20m/min 30m/min Or Can Be Customized | Power: | 3P 220--440 V/50hz60HZ |
| Working Temperature: | ﹣20℃~﹢40℃ | Color: | Clients' Requirments |
| Application: | Workshop, Plants, Warehouse, Factory, Etc. | After-sales Service Provided: | Video Technical Support And So On |
| Highlight: | A3 LDP Single Girder Overhead Cranes,10T LDP Single Girder Overhead Cranes,A4 overhead crane single girder |
||

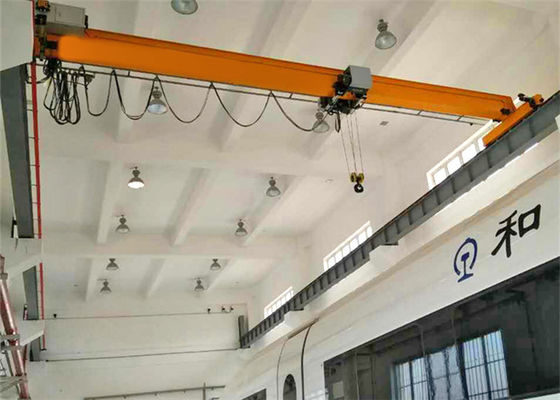

10 Ton Low Clearance LDP Type Single Girder Overhead Bridge Cranes
Product Description
Low Headroom Overhead Crane is designed and improved on basis of LD model, compared with LD model; it is equipped with the features of reasonable structure, strong rigidity, and light dead weight of whole set, which could effectively save your factory space and investment cost, its particular and special travelling structure is your best choice.The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.
Drawing and Specification
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) | Duty Class |
| 1 | 5~35 | 3~25 | A5 or A3 |
| 3 | 5~35 | 3~25 | A5 or A3 |
| 5 | 5~35 | 3~25 | A5 or A3 |
| 10 | 5~35 | 3~25 | A5 or A3 |
| 12.5 | 5~35 | 3~25 | A5 or A3 |
| 15 | 5~35 | 3~25 | A3 |
| 16 | 5~35 | 3~25 | A3 |
| Customizable | Customizable | Customizable | Customizable |
Main parts
Production Workshop
Package and Delivery
Installation and Commissioning
FAQ
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
5. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
