| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | BH |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 10-1200t, Customized | Span: | 5-110m, Customized |
|---|---|---|---|
| Lifting Height: | 5 ~ 15m, Customized | Working Class: | A5-A8 |
| Color: | Customer Requirements | Usage: | Lift Boat Or Yacht Or Vessel |
| Power Supply: | Disel Engine | Main Electrical Parts: | Siemens, Schneider Or Other Famous Brand |
| Sling Type: | Wire Rope | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 180t Mobile Boat Lifting Crane,150t boat lifting crane,110m Yacht Travel Lift Crane |
||

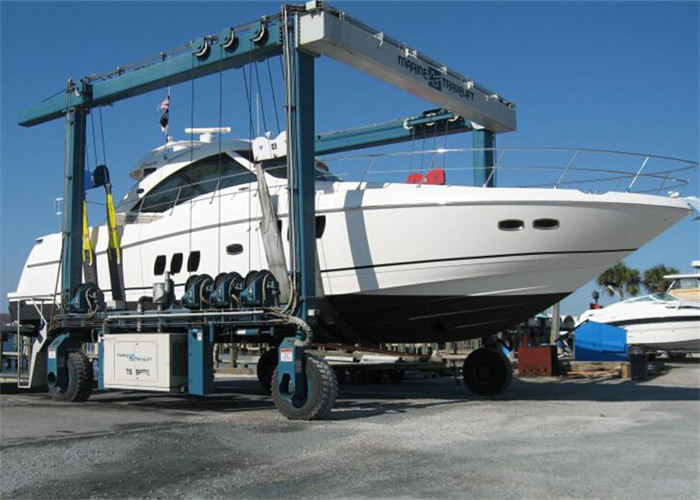

80t 120t 150t 180t Mobile Boat Lifting Hoist Crane Travel Lift Crane For Yacht
Product Description
| Mobile boat lifting hoist is a kind of special boat handling machine,its also called yatch handling machine,mobile boat hoist,marine boat travel lift.Normally,the lifting crane rated lifting capacity from10t to 1200t.This machine widely used in Shipyard,Ship boat factory,Navy,Yacht,Water entertainment center,etc.Boat lifting crane can be customized design according to our clients' demands,can quickly and easily meet the different boats of the lifting, maintenance and repair or plant transfer between the work. |
Drawing and Specification
| Lifting Capacity (t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | |
| Span (m) | 18-35 | ||||||
| Lifting Height (m) | 10-13 | ||||||
| Duty Class | A5-A8 | ||||||
| Speed (m/min) |
Lifting | 8.5 | 7.9 | 7.2/10.4 | 7.5/10.4 | 7.8/10.5 | 6/10.4 |
| Trolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | |
| Crane | 40 | 38 | 38 | 40 | 40 | 38 | |
| Motor | Lifting | YZR180L-6/17 | YZR225M-8/26 | YZR225M-8/26 YZR200L-6/26 |
YZR280S-10/42 YZR200L-6/26 |
YZR280M-10/55 YZR225M-6/34 |
YZR280M-10/55 YZR200L-6/26 |
| Trolley | YZR132M1- 6/2.5*2 |
YZR132M2- 6/4*2 |
YZR132M2- 6/4*2 |
YZR132M1- 6/4*2 |
YZR132M1- 6/6.3*2 |
YZR132M1- 6/6.3*2 |
|
| Crane | YZR160L-6/13*2 | YZR160L-6/13*2 YZR160M1- 6/6.3*4 |
YZR160L-6/13*2 YZR160M2- 6/8.5*4 |
YZR160M2- 6/8.5*4 |
YZR160L-6/13*4 YZR160M2- 6/8.5*4 |
YZR160L-6/13*4 | |
| Weight (t) |
Trolley | 9 | 9.5 | 12 | 16 | 18 | 24 |
| Total | 63.2-100 | 78-106 | 79-120 | 95-108 | 106-155 | 195 | |
| Wheel Pressure (KN) | 225-295 | 255-373 | 208-289 | 324-334 | 314-363 | 452 | |
| Steel Track | 43kg/m | 50kg/m | |||||
| Power Source | 3-phase A.C 380V 50HZ (As your demand) | ||||||
Feature
1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.
2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.
3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.
4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
5. This boat crane can make the boat in order quickly; it also can adjust the gap between each boat according to different condition.
Package and Delivery
• 180days for production, the port loading and custom cost about 6 days,
• The sea transportant takes 15days to 35days, the loading, transport and installation takes about 10days to 20days
• Total time: 210days to 241days
Installation and Commissioning
| After Sales Services |
|
• 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors. • 2 years spare-parts provided for better maintenance. • Professional technical staffs provide installation, commissioning and training services. • Delivery with English user manual, parts manual, product certification and other relevant certificates. • Technical advisory for any time and Engineers available to service machinery overseas |
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
