| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Lifting Capacity: | 0.5-80 Ton, Customized | Lifting Height: | 3-35m, Customized |
|---|---|---|---|
| Condition: | New | Voltage: | 220V-690V/50Hz |
| Color: | Customised | Core Components: | Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Class: | M5 / M6 | Standard: | F.E.M, DIN, EN Standard |
| Lift Speed: | 8m/min | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | MD Electric Wire Rope Hoists 3T,50Hz electric wire rope hoist 3 ton,electric wire rope hoist 500kg |
||

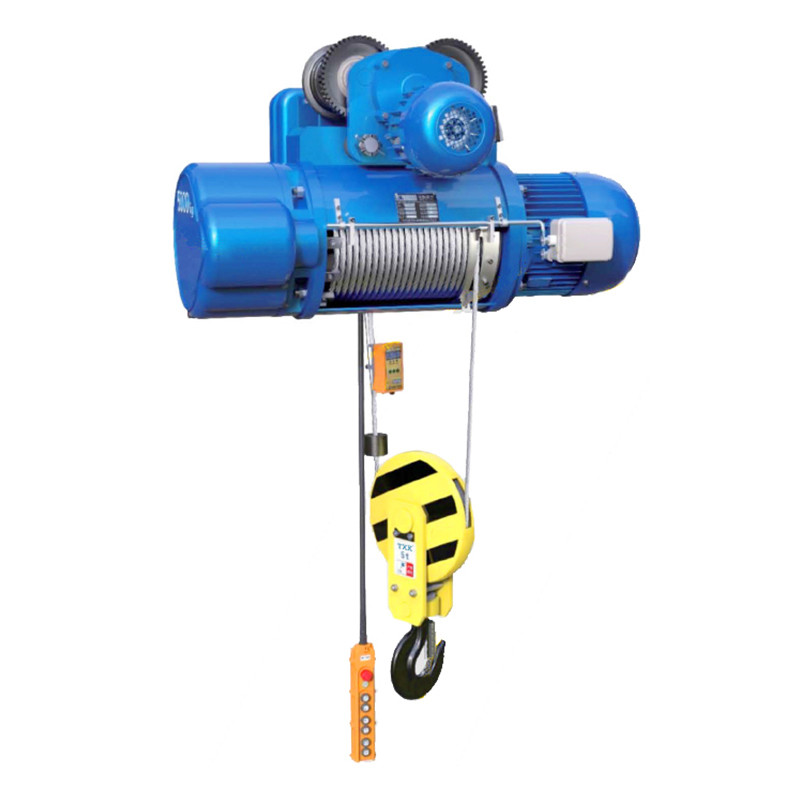

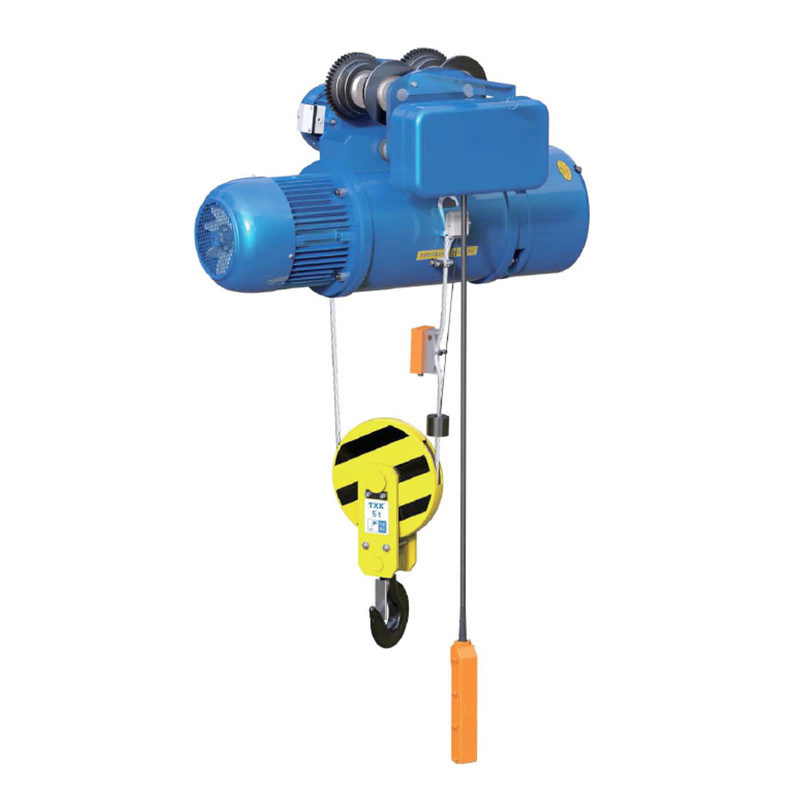

Warehouse Blue 3T Custom Design Wire Rope CD MD Electric Chain Hoist
Product Description
Electric hoists usually have two types: CD and MD. MD Model Electric hoists provide two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbors, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Drawing and Specification
| Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |
| Hoisting (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-30 | |
| Hoisting speed (m/min) | 0.8/8 | 0.7/7 | 0.35/3.5 | ||||||
| Travel speed (m/min) | 20 | 20/30 | 18 | ||||||
| Steel Wire Rope | Dia (mn) | 3.6 | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 |
| Specification | 6×19 | 6x37 | |||||||
| Power source | Three-phase AC 380V 50Hz | ||||||||
| Basic Dimensions (mm) | L1 | 78 | 274-418 | 345-1129 | 352-1152 | 380-1204 | 415-1255 | 875-2142 | 1136-2651 |
| L2 | 216 | 125 | 158 | 187 | 229 | 267 | 301 | 301 | |
| L3 | 318-462 | 401-1185 | 418-1218 | 448-1272 | 485-1325 | 949-2216 | 1210-2725 | ||
| L4 | 190 | 196 | 240 | 264 | 320 | 376 | 376 | ||
Application
• For Single girder Overhead Crane, Gantry Crane, Jib Crane, Monorail Crane, Lifting Beam etc.
Advantages
1) Famous brand motor ,long life time
2) Durable gear
3) Fast delivery
4) Good aftersale service
Product Details
FAQ
1. Are you manufacturer or trade Company?
Thanks for your question. We are a factory founded in 1997 with trade team for international service.
2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product. With our serial no. you will track the details about the products.
3. About spare parts:
We manunfactur 80% spare parts in our factory to control high quality, and the rest 20% are from overseas and China's most famous supplier.
4. How about sample & MOQ policy?
Thanks for your question. Welcome sample order. MOQ can be 1 set.
5. what is your lead time for your goods?
Thanks for your question. Normally 7~10 working days after received payment, and about 30 days during Chinese new year and hot season.
6.What should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?mote
