| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Standard: | GB | Rail Heigth: | 152mm |
|---|---|---|---|
| Web Thickness: | 15.5mm | Length: | 12.5-25m |
| Weight: | 51.514kg/m | Grade: | 50Mn/U71Mn |
| Process: | Hot Rolling | Application: | Railway Rail |
| Service: | 24-hour Service | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Highlight: | 50kg GB Railway Steel Rail,Railway Steel Rail 152mm Height,U71Mn Heavy Steel Rail |
||

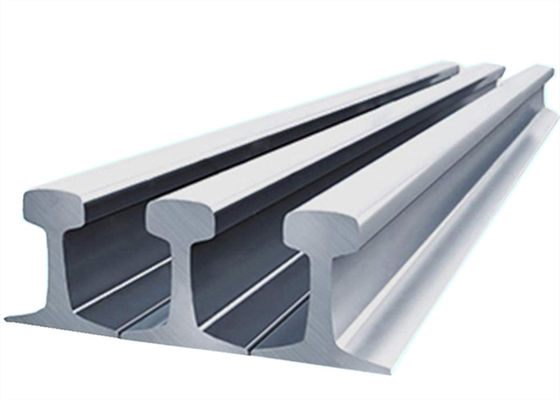

GB Standard Crane Rail Heavy Railway Steel Rail 50kg With High Quality
Product Description
Steel rail also can called railway track, steel railway track, etc. Steel rail is a metal groove or ridge that holds, guides, and reduces friction for a moving device or apparatus. It's paved with strip steel route for driving the train, trolley, etc. The standard steel rail usually composed by two joint bars, rails fixed to the sleepers, rail pad under the sleepers for the road, including roadbed, rail connection parts, etc. Heavy rail refers to the nominal weight greater than 30kg per meter of the rail, divided into steel rail and crane rail. Heavy rail is greater than the light rail section, able to withstand greater force.
Drawing and Specification
| Name of Commodity | Specification | Materials | SECTION SIZE/MM |
Section Area (cm 2) |
Rail Length (m) |
Theoretical weight (kg/m) |
|||
| Height |
Bottom Width |
Top Width |
Waist Thick |
||||||
| steel rail | 38 | U71Mn/50Mn | 134 | 114 | 68 | 13 | 49.5 | 12.5--25 | 38.733 |
| 43 | U71Mn/50Mn | 140 | 114 | 70 | 14.5 | 57 | 12.5--25 | 44.653 | |
| 45 | U71Mn/50Mn | 145 | 126 | 67 | 14.5 | 12.5--25 | 45.546 | ||
| 50 | U71Mn/50Mn | 152 | 132 | 70 | 15.5 | 65.8 | 12.5--25 | 51.514 | |
| 60 | U71Mn/50Mn | 176 | 150 | 73 | 16.5 | 9-12.5/25 | |||
| crane rail | QU70 | U71Mn | 120 | 120 | 70 | 28 | 67.3 | 12 | 52.8 |
| QU80 | U71Mn | 130 | 130 | 80 | 32 | 81.13 | 12 | 63.69 | |
| QU100 | U71Mn | 150 | 150 | 100 | 38 | 113.32 | 12 | 88.96 | |
| QU120 | U71Mn | 170 | 170 | 120 | 44 | 150.44 | 12 | 118.1 | |
Our Service
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
