| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 100 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Usage: | Rail Fastener | Material: | Q235 Or As Your Request |
|---|---|---|---|
| Color: | Customized | Craft: | Drop Forged |
| Types: | With One Bolt Or Two Bolts | Weight: | 0.18-5.54KG |
| Design Condition: | 60%RH | Horizontal Adjustment: | 15 Mm |
| Quality Control: | Inspection | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Highlight: | 15mm Crane Rail Clips,Crane Rail Clips Self Locking,Flexible railway track clips |
||

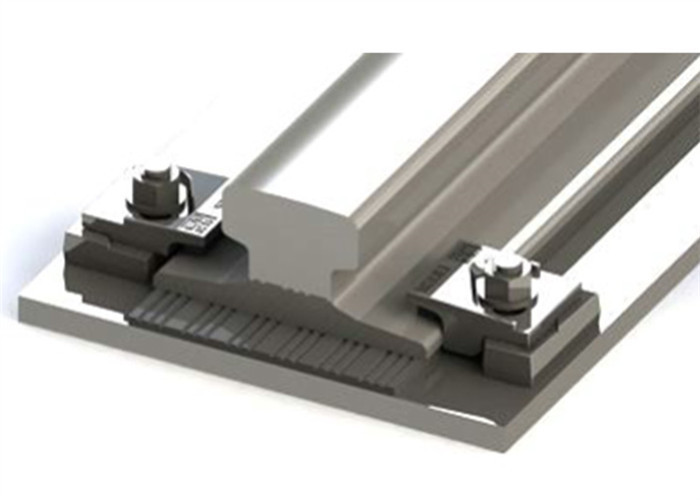

Flexible Self-Locking forged Steel Welded Crane Rail Clips For Railway Track
Product Description
We supply high quality crane rail clip. We provide quality assurance around the world except for non-human damage and force majeure. We offer free replacement for any quality problem. Welded crane rail clip has flexible vulcanized rubber tongue of crane rail fixed part, the material is made of Q235 and Q345 steel hot forging forming, and strength is much stronger than cast steel plate. Vulcanized rubber tongue is adopted to buffer the vibration during the rail work, make the whole life of the rail system much longer.
Specification
|
RAIL TYPE
|
BASE
(mm)
|
HEAD
(mm)
|
HEIGHT
(mm)
|
RAIL WEIGHT(kg/m)
|
1.CLIP REFERENCE FOR RAIL WITH PAD
|
2.CLIP REFERENCE FOR RAIL W/O PAD
|
|
P 50
|
132
|
70
|
152
|
50
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
QU 70
|
120
|
70
|
120
|
52.8
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
QU 80
|
130
|
80
|
130
|
63.69
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
QU 100
|
150
|
100
|
150
|
89
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
QU 120
|
170
|
120
|
170
|
118.5
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
A 100
|
200
|
100
|
95
|
74.3
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
A 120
|
220
|
120
|
105
|
100
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
A 150
|
220
|
150
|
150
|
150.3
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
ISCR 100
|
150
|
102
|
150
|
89
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
ISCR 120
|
170
|
120
|
170
|
118.5
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
GCR 183
|
280
|
75
|
120
|
183.06
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
CR 73
|
140
|
100
|
135
|
73.3
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
CR 100
|
155
|
120
|
150
|
100.2
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
JIS 50 N
|
127
|
64
|
153
|
50.4
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
JIS 60
|
145
|
64
|
174
|
60.8
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
S 41
|
125
|
67
|
138
|
41.4
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
S 49
|
125
|
67
|
149
|
49.43
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
MRS 67 (135CR)
|
132
|
79
|
146
|
67
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
MRS 86
|
165
|
102
|
102
|
85.5
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
MRS 87 B
|
152
|
102
|
152
|
86.8
|
9120/15/38 (S)
|
9120/15/38 (H)
|
|
68 kg AS
|
152
|
73
|
186
|
67.6
|
9120/15/38 (S)
|
9120/15/38 (H)
|
Application
Flexible and adjustment crane rail clip/clamp are widely used in railway, port and shipyard, metallurgy, aerospace base, mining and automatic storage industry.
Components
Product Comparison
1:Rail With Pad 2:Rail Without Pad
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
