| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 100 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Usage: | Trolley | Material: | Stainless Steel |
|---|---|---|---|
| Color: | Customized | Type: | Carrying Roller |
| Power Source: | Electric | Core Components: | Pressure Vessel, Motor |
| Size: | Customized Size | Third Party Inspection: | Accepted |
| Quality Control: | Inspection | After-sales Service Provided: | Field Installation, Commissioning And Training |
| High Light: | Winch Trolly Wire Rope Drum,Magicart Wire Rope Drum,Stainless Steel crane rope drum |
||

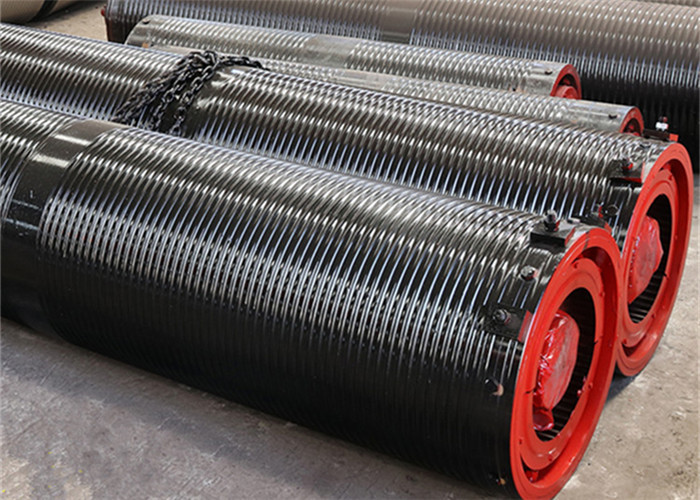

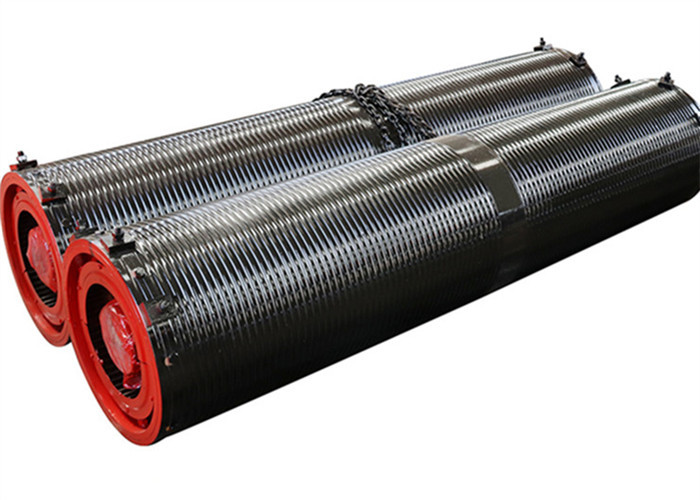

Electric Hoist or Winch Trolly Using Crane Drum Lifting Wire Rope Drum
Product Description
A component used to wrap a wire rope in a reel. Reel and reel shaft, flange ring gear, reel hub, bearing and bearing seat composed of reel group.
When the end of the reel shaft is equipped with a rotary riser limiter, it is necessary to ensure that the spool shaft rotates synchronously with the rotating shaft of the rising limit switch. Roller material using cast iron, in particular, can be used when the cast steel or steel plate rolling manufacturing. If the lifting height is large, in order to reduce the size of the reel, the surface can be guided with a spiral groove or smooth reel for multi-layer winding, but the rope wear faster, suitable for slow and low type of work, Lower tonnage crane. Steel drum group is mainly applied to large tonnage, high performance requirements of the lifting machinery and equipment.
Specification
|
NO.
|
Specification
|
Lifting capacity(t)
|
Pulley ratio
|
Screw pitch
|
Lifting height(m)
|
Weight(kg)
|
|
1
|
φ300×1000
|
3.2
|
2
|
14
|
12
|
264
|
|
2
|
φ300×1500
|
3.2
|
2
|
14
|
18
|
342
|
|
3
|
φ400×1000
|
5
|
2
|
16
|
16
|
334
|
|
4
|
φ400×1500
|
10
|
3
|
16
|
16
|
454
|
|
5
|
φ500×1500
|
16
|
3
|
20
|
16
|
753
|
|
6
|
φ500×1500
|
20
|
4
|
20
|
12
|
753
|
|
7
|
φ650×2000
|
32
|
4
|
24
|
16
|
1500
|
|
8
|
φ800×2000
|
50
|
5
|
28
|
12
|
2534
|
|
9
|
φ800×4000
|
75
|
5
|
32
|
20
|
3390
|
|
10
|
φ1000×4000
|
100
|
6
|
36
|
20
|
6070
|
1. The drum set is one important part of the crane lifting equipment. It is responsible for winding the wire rope, caring the tension and pressure of the lifting weight, and lifting and carrying the heavy objects with the cooperation of other related crane structures.
2. The drum set is widely used in various lifting equipment: single girder overhead crane, double girder overhead crane, gantry crane, port crane, ship winches, winches, beam lifting mechines, three-dimensional garages, all-terrain cranes, etc.
1. The material of this kind of crane drum is cast iron HT200.
2. Cast iron type crane drum is more prevalent than the other two as follows.
3. Centrifugal casting is used in the process of production.
4. The wire rope can be better protected owing to the material of cast iron.
Cast steel type crane drum
1. The material of this kind of crane drum is cast steel.
2. It is rarer than cast iron type and steel plate crane drum because of the lower castability.
3. Centrifugal casting is used in the process of production.
Steel plate type crane drum
1. The material of this kind of crane drum is steel plate, Q235, Q345.
2. It is more common than cast steel type crane drum.
3. Welding is used in the production process of steel palte type crane drum .
4. It is easy and convenient to produce.
Package and Delivery
Crane drums will be packaged in plastic woven cloth.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
