| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 0.05-3.2t, Custimized | Span: | 3-20m, Custimized |
|---|---|---|---|
| Lifting Height: | 3~ 30m, Customzied | Color: | Yellow, Red Or Customzied |
| Material: | Steel Or Aluminum | Main Electrical Parts: | 6m Each Section |
| Rated Lifting Moment: | Depends On The Beam | Crane Feature: | Rail Track Wheel Overhead Crane |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing | After-sales Service Provided: | Video Technical Support, Online Support |
| Highlight: | Span 20m Eot KBK Cranes,Span 3m Eot KBK Cranes,1000kg single girder overhead crane |
||
KBK Eot Model 1000kg Overhead Crane Single Girder Suspension Cranes Types
Product Description
The KBK light crane system offers many possibilities for handling loads quickly, safely and efficiently above the working and production level – without the need to use any of the available floor space for crane runway supports or travel paths. Consequently, all workplaces can be arranged for maximum productivity.
Drawing and Specification
| Capacity (kg) | 125 | 250 | 500 | 1000 | 2000 | |
| Size (mm) | L | 9050 | 8050 | 7050 | 4050 | 3500 |
| LK | 8500 | 7500 | 6500 | 3500 | 3050 | |
| L2 | 95 | 95 | 95 | 220 | 220 | |
| L3 | 645 | 585 | 525 | 470 | 470 | |
| B | 190 | 120 | 190 | 460 | 550 | |
| H | 808 | 878 | 948 | 1071 | 1071 | |
| h | 335 | 335 | 335 | 365 | 365 | |

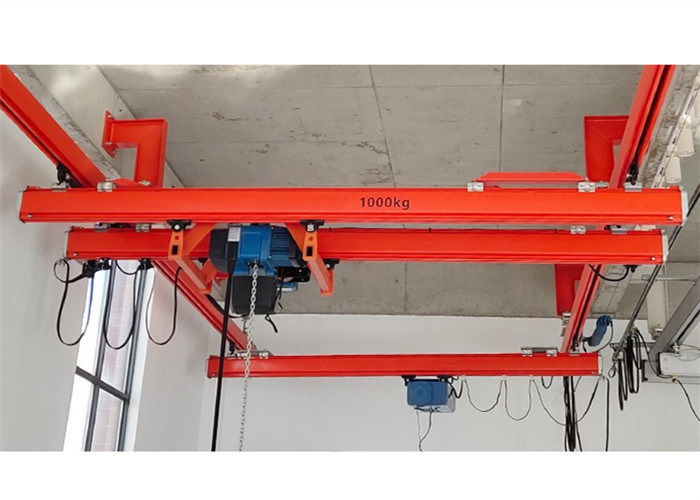

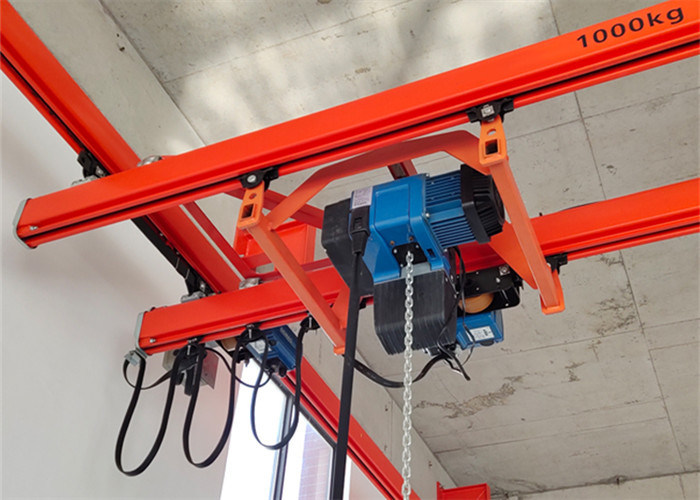

Product Detailed Images
For each size, all standardised components and assemblies, such as straight and curved track sections, track switches, turntables, drop sections, etc., have the same uniform joint dimensions. Selfcentring plug-in and bolted connections allow them to be easily assembled in any combinations. Different profile section sizes can be used for single and double-girder suspension crane runways and girders. All components are protected against corrosion – they are either finished with a coat of paint, galvanised or electrocoated. However, the most common profiles are KBK-I and KBK-II, with max load of 150kg and 1000kg.
Certificate
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
