| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 10kn -3000 Kn | Color: | Customized |
|---|---|---|---|
| Sling Type: | Wire Rope | Rope Diameter: | 7.7~65mm |
| Cable: | Steel Cable | Power Source: | 380V 3P Or Customized |
| Power: | 710W, 1400W, 1200W | Lifting Height: | 6m-30m(max 100m) |
| Voltage: | 12V DC/24V DC | Application: | Cranes,pulling,lifting,hoisting,Boat |
| High Light: | 65mm Electric Wire Rope Winches,7.7mm Electric Wire Rope Winches,Electric Wire Rope Winches 7.7mm |
||

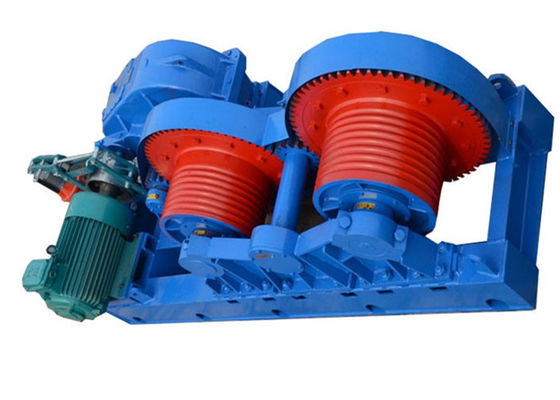

Good Quality Electric Winch For All Kinds Cranes Customized Single Double Drum
Product Description
A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). Our Electric Winch is a must-have for recovery applications and it's really easy to use. Especially optimised for recovery use. Includes everything you need for setup and operation.
Specification
| Model | Voltage |
Gear Reduction Ratio |
Wire rope |
Winch Size (mm) |
Net Weight (kg) |
| 2000lb | 12VDC/24VDC | 153:1 | 4mmx6m | 285x105x105 | 6.5 |
| 3000lb | 12VDC/24VDC | 153:1 | 5mmx6m | 300x110x105 | 7 |
| 3500lb | 12VDC/24VDC | 153:1 | 5.4mmx10m | 300x110x105 | 9 |
| 4000lb | 12VDC/24VDC | 180:1 | 6mmx10m | 370x110x105 | 10 |
| 4500lb | 12VDC/24VDC | 136:1 | 6mmx10m | 370x110x105 | 12 |
| 5000lb | 12VDC/24VDC | 180:1 | 6mmx14m | 330x110x105 | 14 |
| 6000lb | 12VDC/24VDC | 164:1 | 6.4mmx20m | 440x160x218 | 28 |
| 9500lb | 12VDC/24VDC | 265:1 | 8.3mmx24m | 552x160x218 | 37 |
| 12000lb | 12VDC/24VDC | 265:1 | 9mmx24m | 552x160x218 | 38 |
Characteristics
1. Free spooling clutch allows the wire rope to be pulled out without using electric power.
2. Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
3. Can use Wireless remote control device to control.
4. Differential planetary gear system for fast line speed and sure hold.
5. Automatic load-holding brake for maximum safety.
6. Cam action clutch for free-spooling (fast line-out without using electric power).
7. Longer life and better performance. Fast, powerful and reliable in extreme conditions.
8. Custom gaskets seal up critical inner components from water and debris infiltration.
9. Rubber line stopper holds your hook tightly against your fairlead, eliminates trail rattle.
Types of Electric Winch for You
Magicart Hoist and Crane has types of electric winch for you, such as,small electric winch, light duty winch, and heavy duty winch,rope electric winch, cable electric winch,, hoist winch, mining industrial electric winch and other types of electric winch, etc.
In the following, the hot electric winch will be presented for your reference, inculding, Variable speed electric winch for
sale, Planetary electric winch for sale, Friction electric winch for sale, High speed winch for sale, Low speed electric winch for sale, Double drum electric winch for sale, Piling electric winch for sale, and Heavy duty winch, etc.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
