| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 40-560t, Customized | Span: | 10-32m, Customized |
|---|---|---|---|
| Lifting Height: | 3-40m, Customized | Main Electrical Parts: | Chint Brand Or On Request |
| Lifting Mechanism: | Eliectric Hoist Or Electric Trolley | Power Supply: | 3P 220--440 V/50hz60HZ |
| Working Temperature: | -20-40°C | Core Components: | Engine, Bearing, Gearbox, Motor, Gear |
| Application: | Large Hydropower Stations And Water Conservancy Projects | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | hydropower station double beam overhead crane,300 ton double beam overhead crane,300 ton double beam bridge crane |
||
Product Description

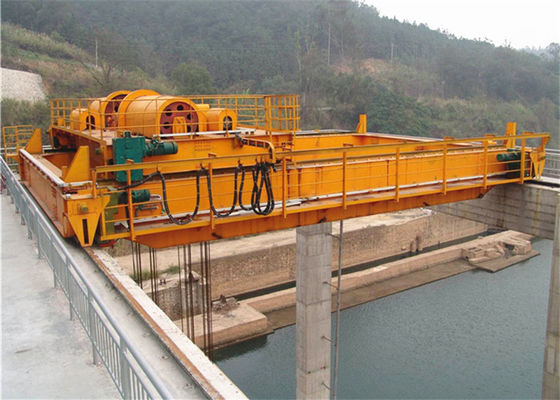

Bridge cranes for hydropower stations are mainly responsible for the installation, operation, maintenance and overhaul of key equipment such as rotors, stators, runners and hoisting tasks of hydropower generator sets. The demand for bridge cranes for hydropower stations is increasing, and the lifting capacity of cranes is also Keep increasing. Before purchasing, please conduct a detailed analysis and comparison of several commonly used typical structural forms, performance characteristics, safety, reliability and economy of large-scale bridge cranes in hydropower stations.
Drawing and Specification
| Product Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Lifting Weight (t) |
Main Hock | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| Aux. Hock | 20 | 25 | 50 | 50 | 50 | 40 | 75 | |
| Group Classification | A3 | |||||||
| Span (m) | 13 | 14.5 | 18 | 21.5 | 19 | 16 | 22 | |
|
Lifting Range (m) |
Main Hock | 20 | 20 | 24 | 24 | 20 | 16 | 25 |
| Aux. Hock | 26 | 25 | 26 | 26 | 26 | 24 | 40 | |
|
Working Speed (m/min) |
Main Lifting Mechanism | 1.05 | 1 | 2.74 | 1.0 | 0.139-0.695 | 0.84 | |
| Aux. Lifting Mechanism | 8.14 | 8.68 | 5.46 | 3.7 | 6 | 5.8 | 5.22 | |
| Traversing Mechanism | 7.77 | 11.6 | 27.2 | 10 | 10 | 8.1 | 5.57 | |
| Traveling Mechanism | 24.8 | 26 | 56.5 | 18 | 18 | 17.7 | 32.3 | |
| Max. Wheel Load (KN) | 355 | 430 | 280 | 345 | 450 | 470 | 565 | |
| Total Motor Power (KW) | 120 | 120 | 223 | 123 | 135 | 161 | 253.5 | |
| Power Supply | 3-Phase AC 380v 50Hz | |||||||
1) Necessary Info needed from client for offer
● SWL / Load Capacity ● Span (S) ● Max. Lifting Height (H)
● Travel Rail Length ● Quantity of crane ● Power Voltage
2) More info needed from client if available
● Workshop Building Drawing or Size ● Height above H-beam (H1)
● Height under H-beam (H2) ● Remote control or Cabin control
Features:
1.Widly used in hydropower station, river and water conservancy facilities.
2.Especially for FLAT/SLUICE GATE hoisting and lowering.
3.Single or double lifting points on optional.
4.Hoisting slings is wire rope, pulley block falling from drums;
5.Electric motorized, Centralized drive or individual drive.
6.Manual drive assemblied when electric fail.
7.Overload limiter, height indicator are all included. etc.
More displays
FAQ:
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
