Detail Information

Load Capacity:	0.05~3.2t, Custimized	Span:	3~10.5m Adjustable
Lifting Mechanism:	Eliectric Hoist	Crane Material:	Q235 Carbon Steel
Color:	Customer Requirements	Core Components:	PLC, Bearing, Motor, KBK Track
Customization Requires Data:	Tonnage Stroke Length Span Or Usage Scenario	Crane Feature:	High Stability, Easy Installation, Economic, High Efficiency
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing	After-sales Service Provided:	Video Technical Support, Online Support
Highlight:	3.2t double girder overhead crane , kbk rail double girder overhead crane , 3.2t kbk cranes

Product Description

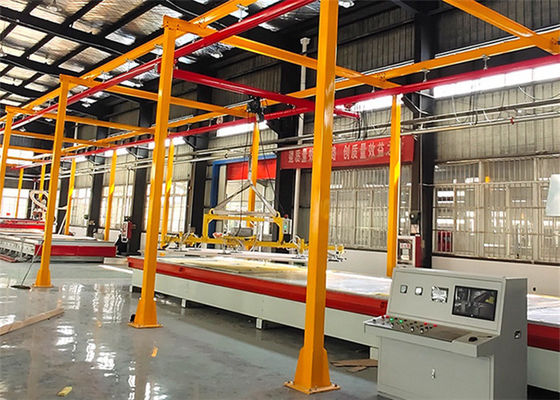

Light Duty Double Girder Suspended Overhead with KBK Rail System Easy installation

Product Description

The KBK flexible suspension crane is constituted by KBK track, electric chain hoist and installation components. The KBK suspension crane can be a very simple equipment with 2 straight rails, also can be very complex suspended monorail system. KBK flexible suspension crane has simple operation of manual operation also has complex operation such as automatic system operated by compute integrated control.

Drawing and Specification

Light Duty 3.2t Double Girder Suspended Overhead With Kbk Rail System 0

SWL / Load Capacity (kg)	Span (m)	Max Lifting height (m)	Class
80	3~10.5	3~9	A3~A5
100	3~10.5	3~9	A3~A5
150	3~10.5	3~9	A3~A5
200	3~10.5	3~9	A3~A5
300	3~10.5	3~9	A3~A5
500	3~10.5	3~9	A3~A5
500 ~3200	3~10.5	3~9	A3~A5
Customized	Customized	Customized	N/A

Main Feature

Compact structure, easy for installation

KBK Crane is convenient to install and debug. It can be used after a bolted connection. KBK profile and the standard module, it can greatly save space and area of the factory, to reduce the energy consumption and improve the efficiency of the enterprise. System can be manually operation, also can realize the automatic, semi-automatic operation. KBK Crane are mainly used with chain hoist, its whole structure is compact, it has a low structural height,light weight, can realize long-span suspension, working space is broad, lifting space is large.

Lifting capacity and height

KBK Crane is applicable to general workshop, warehouse and the place which lifting materials below 3.2 t, lifting transportation demand environment temperature is 20 ℃ - ~ + 60 ℃.

Lifting speed

The install location of KBK crane should be no more than 1500 m altitude, general work indoors.

Structure

For the application environmental temperature beyond - 20 ℃ ~ + 60 ℃, working outdoors and have corrosion gas (liquid), special protective measures should be taken.

Product Details

Light Duty 3.2t Double Girder Suspended Overhead With Kbk Rail System 1

Package and Delivery

Light Duty 3.2t Double Girder Suspended Overhead With Kbk Rail System 2

FAQ

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.

Tag:

Place of Origin:	Henan, China
Brand Name:	Magicart
Certification:	CE, ISO, SGS, GOST, BV

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	High quality plywood crate and plastic woven cloth
Delivery Time:	According to customer needs
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000 sets per year
