Boat Handling Machine Marina Boat Lifting Pivoting Jib Crane Boat Lift Price
Product Description

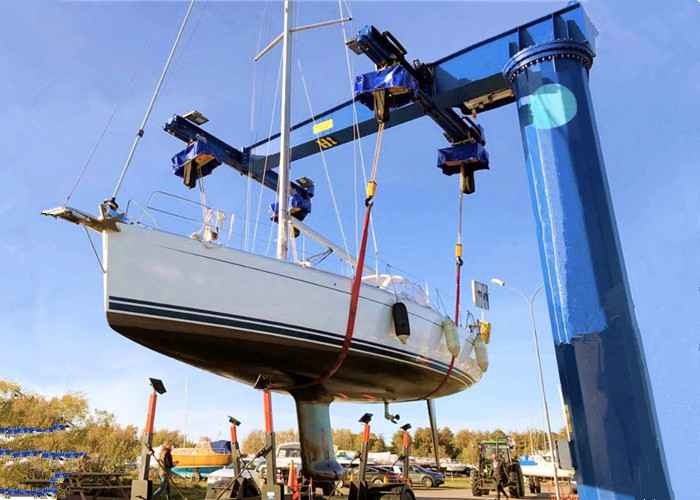

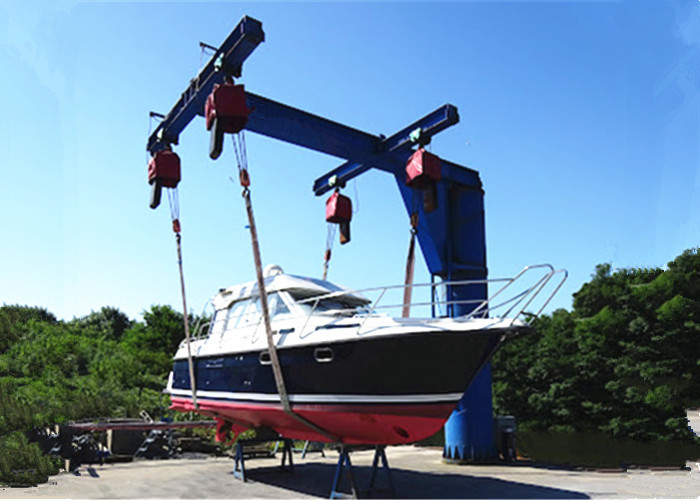

Boat Handling Machine Marina Boat Lifting Pivoting Jib Crane Boat Lift is used for yacht lifting, and its column is fixed on the river embankment. The top of the column is equipped with a rotating structure, and the rotating mechanism is driven by a motor fixed on the top of the column. The top of the rotating mechanism is equipped with a boom. There are two beams on the boom, and the lower end of the beam has a lower flange plate. The electric hoist is installed on the beams on the left and right sides of the boom to run. The top of the column is provided with a maintenance platform on the rotating mechanism, and a climbing ladder is provided on one side of the column.
The design has reasonable structure, convenient operation and stable operation.
Drawing and Specification
| Load Capacity (ton) |
Outreach
(m)
|
Max. Lifting height (m) |
Duty Class |
| 1 |
3~6 |
3~8 |
A3 or A5 |
| 2 |
5~35 |
3~25 |
A3 or A5 |
| 3 |
5~35 |
3~25 |
A3 or A5 |
| 5 |
5~35 |
3~25 |
A3 or A5 |
| 8 |
5~35 |
3~25 |
A3 or A5 |
| 10 |
5~35 |
3~25 |
A3 or A5 |
| 12 |
5~35 |
3~25 |
A3 or A5 |
| Customizable |
Customizable |
Customizable |
Customizable |
Features:
1. Boat Jib crane is composed of column, slewing arm, slewing drive device and electric hoist.
2. The lower end of the column is fixed on the concrete foundation by anchor bolts.
3. The electric hoist runs in a straight line on the cantilever I-beam and lifts heavy objects.
4. It is suitable for short distance, frequent use and intensive lifting operation.
5. Light weight, large span, large lifting capacity, economy and durability.
6. High efficiency, energy saving, trouble saving, small floor area, easy operation and maintenance.
Installation and Commissioning
Package and Delivery
1. Delivery time: within 3-5 months after deposit recived.
2. Packaging: Wooden case for electric parts,motor,accessories, color cloth for main structure. All parts will be loaded into 20ft or 40ft container. Or all parts will be loaded onto Bulk Cargo Ship after package if the length is beyond 12.0m
3. Load port : Qingdao/Shanghai/Xingang port
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
