| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | BH |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer demand |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 5~1000ton | Clear Width: | 5~50meter |
|---|---|---|---|
| Clear Height: | 5-50meters | Main Electric: | Simens Brand Or Schneider |
| Lifting Mechanism: | Electric Trolly Or Hoist | Color: | As Customer Demand |
| Core Componment: | PLC, Motor | Lifting Speed: | 0-5m/min, Customer's Demand |
| Control Method: | Pendent Control, Wireless Remote, Cabin Contol | After Sales Service: | Engineer Avaiable To Service Machinery Oversea |
| Highlight: | PLC Boat Hoist Crane,Cabin Control Boat Hoist Crane,Travel Lift Crane 250T |
||
Product Description

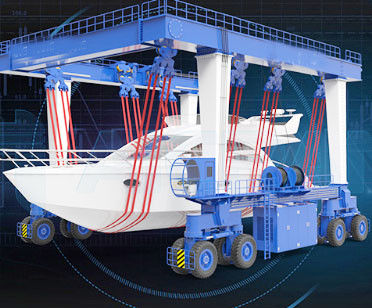

Yacht handling cranes, also known as ship movers. Widely used in water games, yacht clubs, sailing, shipping and learning, etc. It can transport boats or yachts of different tonnages from shore docks for onshore maintenance, repairs or new boat launches.
Ship and yacht loading and unloading cranes include the following items: main structure, walking wheel set, lifting mechanism, steering mechanism, hydraulic transmission system and electrical control system. The main structure is N type, which can handle small boats/yachts whose height exceeds the crane height.
Drawing and Specification
| Model | Capacity | Clear Height | Clear Width |
| DB 10 | 10T | 2m~9m | 3m~12m |
| DB 20 | 20T | 2m~9m | 3m~12m |
| DB 30 | 30T | 2m~9m | 3m~12m |
| DB 50 | 50T | 2m~9m | 3m~15m |
| DB 70 | 70T | 2.5m~12m | 3m~15m |
| DB100 | 100T | 2.5m~12m | 3m~15m |
| DB150 | 150T | 3m~15m | 3m~18m |
| DB200 | 200T | 3m~15m | 3m~18m |
| DB250 | 250T | 3m~15m | 3m~18m |
| DB300 | 300T | 5m~20m | 5m~25m |
| DB400 | 400T | 5m~20m | 5m~25m |
| Customized | Customized | Customized |
Main Features
Environmental Conditions
1. The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2. The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3. In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4. The working class is A6-A7.
5. The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6. The crane which has the special requirement for working conditions, can be manufactured following the contracts.
Package and Delivery
Typical Project
Installation and Commissioning
Product Certificate
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
