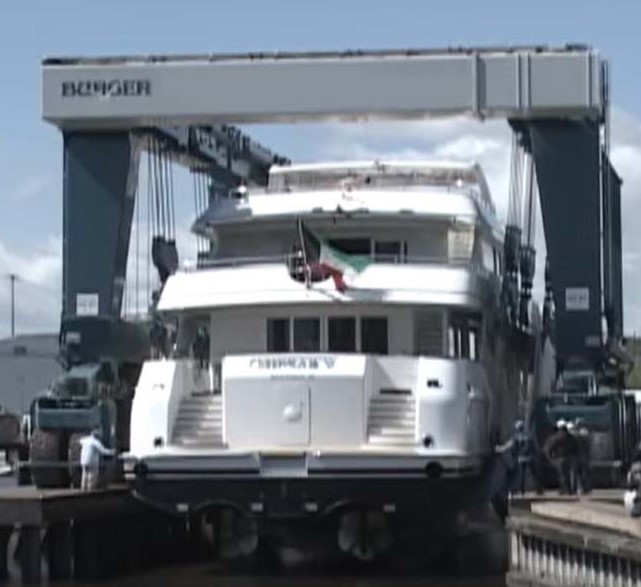

customizable 10-1200t Ship Boat Gantry Crane Single Beam Double Beam

 Ship&boat lift gantry crane, single beam and double beam, customized

Product Description

The performance of ship lift gantry cranes requires that the lifting capacity of the crane should be able to reach the rated turning capacity and rated lifting capacity. The hoisting mechanism should adopt the method of electric braking first and then mechanical braking. The operation of the upper and lower trolleys of the crane should be either linked or operated independently. The hoisting mechanism should be equipped with three-level upper and lower height limiters for lifting deceleration, stop and overrun. Both the crane operating mechanism and the trolley operating mechanism should be equipped with stop and overrun two-stage limiters and buffers. When there is speed regulation, set deceleration, stop and overrun three-stage travel limiters and buffers. Each crane is equipped with at least one set of mechanical running deflection limiters and one set of automatic deflection correction devices.

​​Drawing and Specification

Feature

1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.

2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.

3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.

4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.

5. This boat crane can make the boat in order quickly; it also can adjust the gap between each boat according to different condition.

Package and Delivery

• 180days for production, the port loading and custom cost about 6 days,
• The sea transportant takes 15days to 35days, the loading, transport and installation takes about 10days to 20days

• Total time: 210days to 241days

Installation and Commissioning

FAQ

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
