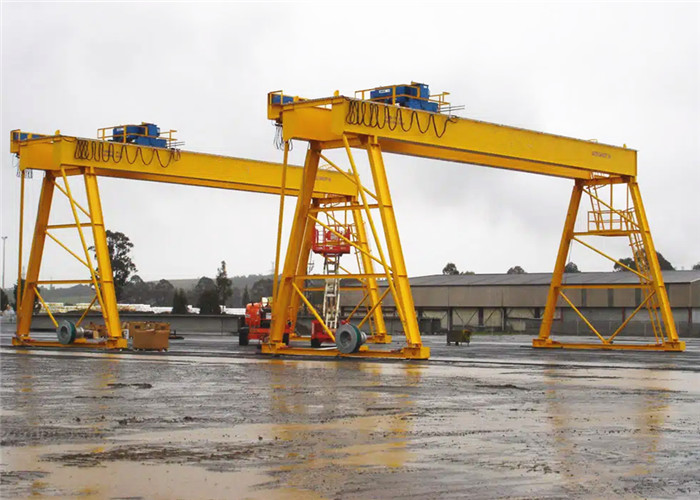

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph

Basic Information
Place of Origin: Henan, China
Brand Name: Magicart
Certification: CE, ISO, SGS, GOST, BV
Model Number: MG
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: High quality plywood crate and plastic woven cloth
Delivery Time: 30000 sets per year
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: According to customer needs
Detail Information
Capacity: 5t~800t, Customized Span: 5m~60m, Customized
Lifting Height: 5m To 110m, Customized Class: A5, Option A6/A7
Application: Warehouse,workshop,indoor,plants,stockyard, Etc. Color: Customer Requirements
Power Source: 380V 50Hz 3Ph Or Customized After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

A5 Rail Gantry Crane 50Hz 3Ph

,

Rail Gantry Crane 380V 50Hz

,

A5 50Hz 3Ph trolley gantry crane


Product Description

Double Beam Trolley Type Rail Gantry Crane Outdoor Using A5 Level



Product Description



Double beam gantry crane is a double-track crane. The lifting capacity is 5-800 tons, and the working   environment temperature is -25~40℃. It is suitable for lifting goods in factories, stations, docks, construction sites, hydropower stations, and shipbuilding. This machine is mainly composed of five parts: box traveling bridge, cart traveling bridge, trolley, driver's cab and electrical system. The trolley uses flexible cables to conduct electricity, and all operations are controlled in the driver's cabin. This machine can also be equipped with a grab bucket.





​​Drawing and Specification

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 0

Load Capacity (ton)

Span /Rail Gauge

(m)

Max. Lifting height-H2

(m)

5 5~35 5~25
10 5~35 5~25
16 10~50 5~25
20 10~50 5~35
25 10~50 5~35
32 10~50 5~35
50/10 10~50 5~35
70 10~50 5~35
100 10~50 5~35
120 10~50 5~35
150 10~50 5~35
200 15~50 10~35
250 15~50 10~35
300 15~50 10~35
350 15~50 10~35
400~800 15~50 10~35
Customizable Customizable Customizable





Product Details



Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 1

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 2

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 3

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 4

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 5

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 6

Outdoor A5 Double Beam Trolley Rail Gantry Crane 380V 50Hz 3Ph 7





FAQ



1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
