5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly

Basic Information
Place of Origin: Henan, China
Brand Name: Magicart
Certification: CE, ISO, SGS, GOST, BV
Model Number: MG
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: High quality plywood crate and plastic woven cloth
Delivery Time: According to customer needs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 sets per year
Detail Information
Capacity: 50t~800t, Customized Span: 8m~60m, Customized
Lifting Height: 5m To 110m, Customized Class: A3~A8
Application: Warehouse,workshop,indoor,plants,stockyard, Etc. Color: Customer Requirements
Power Source: 380V 50Hz 3Ph Or Customized Lifting Speed: 3m/min, Customized
Wheel Pressure: Cart 185KN/Handcart 300KN After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

110m Lifting Shipyard Crane

,

110m Lifting port gantry crane

,

Large Scale Shipyard Crane


Product Description

Rail Ganry Cranes, Necessary For Shipyards And Large-Scale Equipment Assembly



Product Description

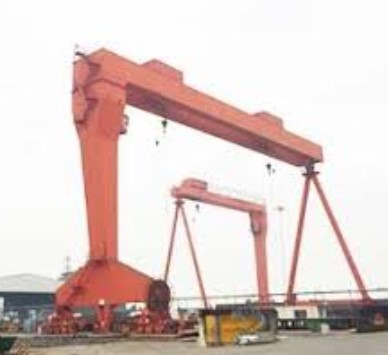

The ship building gantry crane can be single girder gantry crane and double girder gantry crane. When it comes to large span and lifting weight, we suggest the single girder gantry crane for ship building which is more economy.
The single girder gantry crane for ship building is mainly composed of steel gantry frame, upper trolley, lower trolley, trolley travelling mechanism, maintenance, lubrication, elevator and electric equipment. And there are rail clamp device (or wheel actuator), anchor device, lifting weight limiter system, wind speed and direction system, limit switch of each mechanism, and the other safety protection device for this crane. The deviation rectifying system can be equipped in case of very large span.



​​Drawing and Specification



5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 0

Load Capacity (ton)

Span /Rail Gauge

(m)

Max. Lifting height-H2

(m)

Duty Class
1 5~35 5~25 A3 or A5
3 5~35 5~25 A3 or A5
5 5~35 5~25 A3 or A5
10 5~35 5~25 A3 or A5
12.5 5~35 5~25 A3 or A5
16 5~35 5~25 A3 or A5
20 5~35 5~25 A3 or A5
32 5~35 5~25 A3 or A5
Customizable Customizable Customizable Customizable





Application



Double girder gantry crane is usually used to open warehouse or along rail for general material handling and lifting work, such as, freight yard or dock, etc.





Advantages

  • Advanced technology, delicate design, attractive appearance
  • Novel structure, wide span, high crane stability and reliability
  • Large loading capacity and high working efficiency
  • Flexible operation and easy maintenance
  • Standardization, generalization and serialization of the spare parts.





Product Details

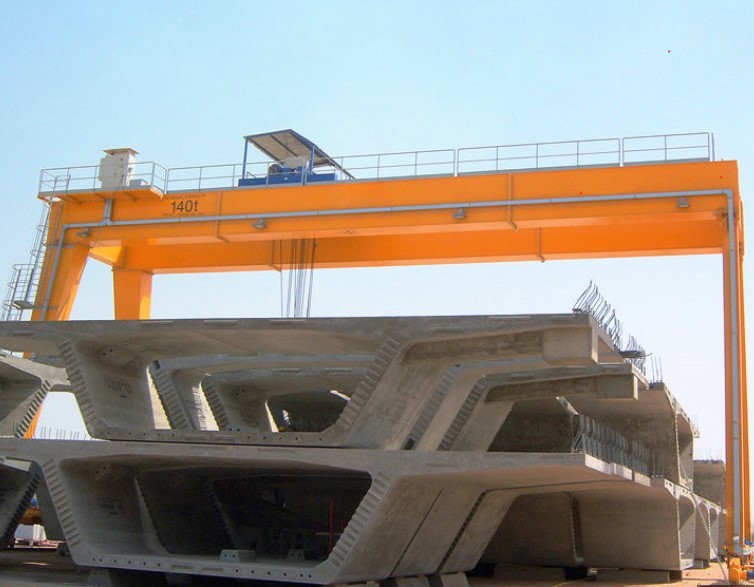

5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 1





Package and Delivery

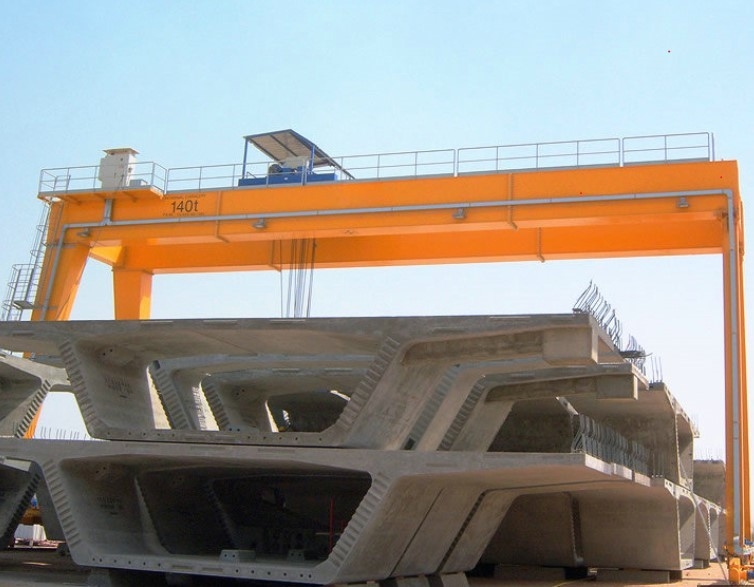

5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 2





Installation and Commissioning

5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 3

5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 4

5m To 110m Lifting Height Shipyard Crane Large Scale Equipment Assembly 5





FAQ



1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;


4. Q: What's your warranty period?
A: 12 months from cranes accepted;

5. Q: Do you have engineer oversea installation service?
A: Yes; We have;

6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
