| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | QZ |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Span: | 10.5-31.5m, Customized | Lifting Height: | 12-22m, Customized |
|---|---|---|---|
| Painting Color: | Customized | Lifting Speed: | 30~100m/min |
| Max. Lifting Load: | 25 T, Customized | Working Class:: | A6-A7 |
| Crane Feature: | Easy Operated Girder Bridge Crane | Power Supply: | 3P 220--440 V/50hz60HZ |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 20/7.5T Double Girder Overhead Cranes,31.5m Double Girder Overhead Cranes,MAGICART 7.5 ton bridge crane |
||
Product Description

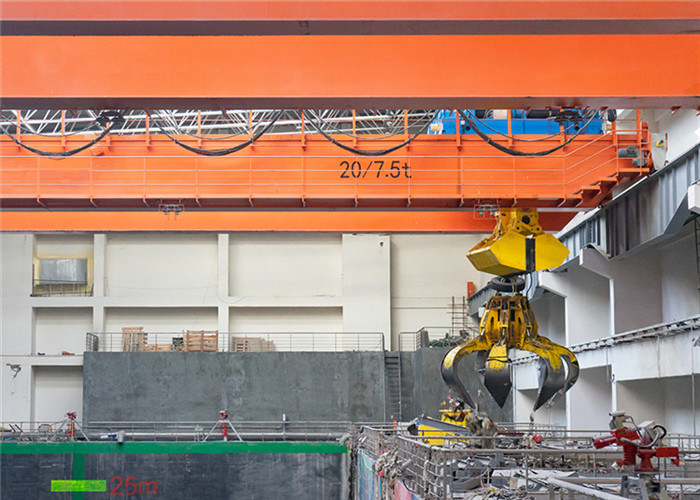

The garbage grab crane is the core equipment of the garbage feeding system of various garbage incineration power plants in modern cities. It is located above the garbage storage pit and mainly undertakes the operations of feeding, handling, mixing, picking and weighing the garbage. The garbage grab crane produced by our company can perform strict lifting and conveying operations to ensure the normal operation of garbage incineration power plants. The crane can realize manual, semi-automatic and fully automatic control.
Drawing and Specification
| Rated load/ton | 5 | 10 | 16 | 20 | 25 |
| Span/m | 10-40 | ||||
| Lifting height/m | 22 | ||||
| Working class | A6/3M | ||||
| Lifting speed/m/min | 40.8 | 40.26 | 41.8 | 48.5 | 38.8 |
| Open-close speed/m/min | 40.8 | 40.26 | 41.8 | 48.5 | 38.8 |
| Trolley running speed/m/min | 44.5 | 45.6 | 43.2 | 43.2 | 43.2 |
| Crane running speed/m/min | 92 | 86.5 | 87 | 87 | 87 |
| Dead weight/t | 17.5~38.5 | 25.1~46.6 | 43~63 | 50.6~70.7 | 54.2~75.8 |
| Number of wheel | 4 | 4 | 4 | 4 | 4 |
| Max. wheel pressure/KN | 75~17.4 | 117~186 | 202~258 | 235~302 | 255~320 |
| Steel track recommended | P43 | P43 | P43 | QU70 | QU70 |
| Power supply | 3AC 220~480V 50/60Hz | ||||
Product Features
Various Spreaders and Accessories
FAQ:
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor,
hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly
welcomed to our factory to make the inspections.
