| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | QZ |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Span: | 6-38m, Customized | Lifting Height: | 12-22m, Customized |
|---|---|---|---|
| Painting Color: | Customized | Weight:: | 20000 Kg |
| Lifting Speed: | 30~100m/min | Max. Lifting Load: | 25 T, Customized |
| Working Class:: | A6-A7 | Power Supply: | 3P 220--440 V/50hz60HZ |
| Video Outgoing-inspection: | Provided | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | QZ Double Girder Overhead Cranes 12m,A7 Double Girder Overhead Cranes 12m,QZ Double Girder Overhead Cranes 22m |
||
Product Description

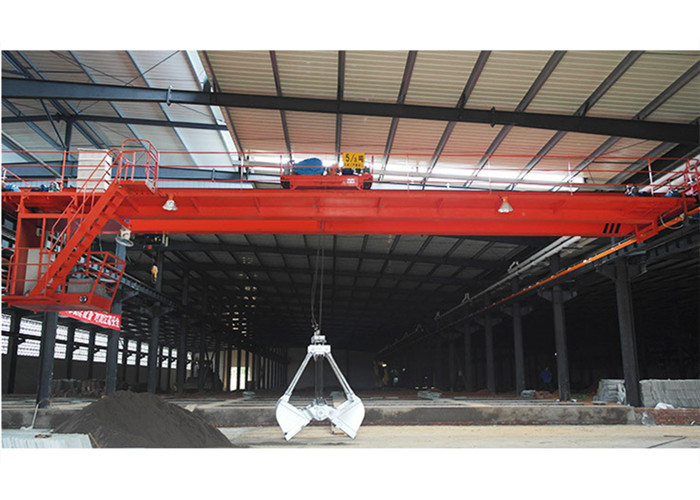

Overhead crane grab bucket crane is heavy work, the working-level is A6, A7. Rated lifting weight is 5~25T and the grab opening direction have two kinds of parallel and perpendicular to main beam. The capture device is four-rope grad with double drum , simple structure, reliable operation. Grab can open and close at any height . Grab only applies to granular material which on the natural state , when grab underwater items or special items, shall be mention particular when ordering .
Drawing and Specification
| Rated load/ton | 5 | 10 | 16 | 20 | 25 |
| Span/m | 10-40 | ||||
| Lifting height/m | 22 | ||||
| Working class | A6/3M | ||||
| Lifting speed/m/min | 40.8 | 40.26 | 41.8 | 48.5 | 38.8 |
| Open-close speed/m/min | 40.8 | 40.26 | 41.8 | 48.5 | 38.8 |
| Trolley running speed/m/min | 44.5 | 45.6 | 43.2 | 43.2 | 43.2 |
| Crane running speed/m/min | 92 | 86.5 | 87 | 87 | 87 |
| Dead weight/t | 17.5~38.5 | 25.1~46.6 | 43~63 | 50.6~70.7 | 54.2~75.8 |
| Number of wheel | 4 | 4 | 4 | 4 | 4 |
| Max. wheel pressure/KN | 75~17.4 | 117~186 | 202~258 | 235~302 | 255~320 |
| Steel track recommended | P43 | P43 | P43 | QU70 | QU70 |
| Power supply | 3AC 220~480V 50/60Hz | ||||
Product Features and Advantages
Safety Devices
Application
This grab bucket double girder overhead crane is widely used in power station, storage, smelting workshop of steel mill, port, cement plant, and waste recycling station, etc. to load and unload scattered objects. The grab crane has a high requirements on heat, dust, and aggressive environment. We can provide you the optimal grab crane to your applications.
Package and Delivery
Fast Delivery:
Magicart has production security system and experienced workers to ensure timely or early delivery period.
Package:
By National Stantion exporting standard plywood box, wooden pallet or in 20ft & 40ft Container. Or as per your demands.
FAQ:
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor,
hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly
welcomed to our factory to make the inspections.
