| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | QC |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 5t~500t, Customized | Span: | 7.5-31.55m, Customized |
|---|---|---|---|
| Lifting Height: | 3-35m, Customized | Painting Color: | Yellow, Red Or Customzied |
| Work Duty: | A3-A8 | Power Supply: | 380V50HZ Three-phase Or As Require |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Crane Feature: | Easy Operated Girder Bridge Crane |
| Lifting Mechanism: | Eliectric Winch Trolley | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 15t Double Girder Overhead Cranes,50HZ Double Girder Overhead Cranes,380V 15 ton overhead crane |
||
Product Description

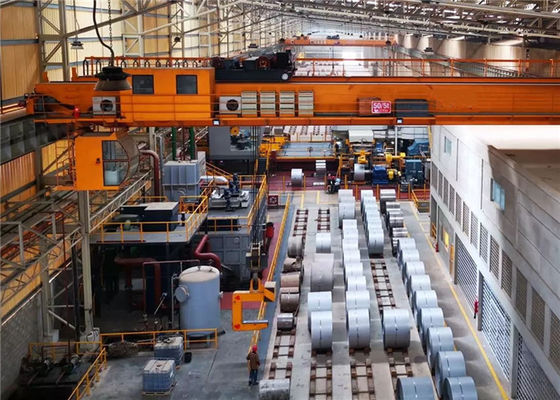

Double Girder Overhead Crane With C Hook Type Bridge Crane For Coil is widely used in steel mill plants,warehouses,material stocks, goods yards, power station,logstic,etc for lifting and moving steel products, steel coils, steel plates and steel pipes and related repairing work.
Drawing and Specification
| Cap (t) | 15 | 20 | 32 | |||||||||||||
| Span (m) | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | |
|
Main Dimensions (mm) |
H | 2208 | 2308 | 2310 | 2570 | 2626 | 2730 | |||||||||
| H1 | 940 | 1040 | 940 | 1080 | 1070 | 1170 | ||||||||||
| H2 | 390 | 540 | 690 | 840 | 542 | 692 | 842 | 992 | 1042 | 416 | 566 | 716 | 816 | 820 | ||
| H3 | 2810 | 2960 | 3110 | 3260 | 2962 | 3112 | 3262 | 3412 | 3462 | 2936 | 2986 | 3136 | 3236 | 3240 | ||
| K | 2000 | 2500 | 3000 | |||||||||||||
| W | 4400 | 5000 | 4900 | 5500 | 5300 | 5500 | ||||||||||
| B | 6234 | 6844 | 7354 | 7464 | 7398 | 7258 | 7478 | |||||||||
| B1 | 260 | 260 | 300 | |||||||||||||
| Max. Wheel Load (KN) | 170 | 190 | 203 | 215 | 230 | 225 | 239 | 250 | 260 | 272 | 305 | 322 | 332 | 345 | 357 | |
| Total Power (KW) | 63 | 94.5 | 111.3 | |||||||||||||
| Lifting Height (m) | 16 | 15 | 15 | |||||||||||||
| Hoisting Speed (m/min) | 13.2 | 12.6 | 12.5 | |||||||||||||
Advantage
Application
Package and Delivery
FAQ:
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
