| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | ME |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 100-1200t, Customized | Span: | 10-35m, Customized |
|---|---|---|---|
| Lifting Height: | 15-35m, Customized | Class: | A5~A8 |
| Girder Type: | Box Or Truss Girder | Color: | Customer Requirements |
| Power Source: | 380V 50Hz 3Ph Or Customized | Main Electrical Parts: | Siemens, Schneider Or Other Famous Brand |
| Wheel Pressure: | Cart 185KN/Handcart 300KN | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 1200t Shipyard Port Cranes,100t Shipyard Port Cranes,100t Rail Mounted ship building crane |
||

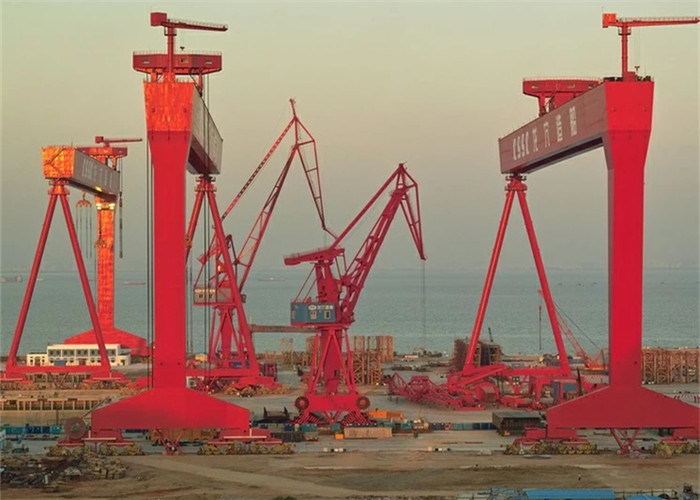

Rail Mounted Gantry Crane For Ship Building Used in Shipyard
Product Description
Shipbuilding gantry crane is a kind of gantry crane, which is used to assemble the ship in the shipyard. Gantry Crane for ship building, which runs on the ground track and is used for the lifting operation of large welding parts such as dock, is a bridge crane with horizontal bridge set on two legs to form the shape of gantry. Its hoisting, trolley operation and bridge are the same as the bridge crane. Shipbuilding gantry crane is a crane used in the place where the ship is manufactured and in the dock. Its task is to transport all the parts (ribs, section steel, steel plate, etc.) required for the manufacture of the ship body from the ground transport equipment to the manufacturing site. This kind of transportation work must be able to complete the task quickly in a long transportation distance. Therefore, the determination of the number of cranes is based on the principle that the foundation area of the whole dock can be reached, and each crane does not interfere with each other.
Drawing and Specification
| Lifting Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/8 | 50/10 | 75/20 | |||
| Working System | A5 | ||||||||||
| Span | m | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | |||
| Lifting Height | Main | m | 10-12 | 10-12 | 10-12 | 12 | 10-12 | 10-12 | 10-12 | ||
| Aux. | m | 10.6-12.6 | 12.6 | 10.7-12.7 | 11.1-13.1 | 11.2-13.2 | |||||
| Speed | Hoisting | Main | m/min | 12.3 | 14.6 | 15.3 | 15 | 13.2 | 5.9 | 6.25 | |
| Aux. | m/min | 22 | 19 | 17 | 13.2 | 9.28 | |||||
| Crab Traveling | m/min | 44 | 43.7 | 44.7 | 44.7 | 38.6 | 36 | 38.9 | |||
| Trolley traveling | m/min | 32-37 | 37.5 | 30-35 | 32.9-34.5 | 52.53 | 38.6-45 | 32.6-38.5 | |||
| Installed Power | KW | 36.5-45.5 | 47-56 | 68.3-76.3 | 78.3-87.3 | 129.5-145.5 | 143-159 | 185-201 | |||
| Max.Wheel Load | KN | 217-289 | 247-354 | 180-236 | 211-270 | 275~369 | 392-483 | 314-361 | |||
| Steel Track Recommended | P43 | QU70 | QU80 | ||||||||
| Power Source | 3–phrase A.C. 50Hz 380V | ||||||||||
Advantages
Box type advantage:
1. Compact structure, good rigidity, strong lifting capacity, indoor use available
2. Characteristic of slim body, save shipping cost.
Truss type advantage:
1. Small windward side and wind resistance.
2. Light dead weight, Low cost.
3. Nice appearance.
Safety Sevices
1. Overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Lifting height limit device
Package and Delivery
Installation and Commissioning
Product Certificate
Our Services
FAQ
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from cranes accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
