| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | 30000 sets per year |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | According to customer needs |
| Capacity: | 1t~5t, Customized | Span: | 3m~15m, Customized |
|---|---|---|---|
| Lifting Height: | 3m~20m, Customized | Working Temperature: | -20 ~ 40 ℃ |
| Color: | Customer Requirements | Material: | Q235B/Q345B |
| Wheel: | 360 Degree Rotating Wheel | Type: | Adjusting Height |
| Application: | Warehouse, Workshop, Work Station | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | Span 9m Light Duty Gantry Crane,Span 3m Light Duty Gantry Crane,OEM Aluminium Gantry Crane |
||
Portable Mobile Gantry Cranes Aluminium Light Duty Mini Lifting Gantry Cranes
Product Description

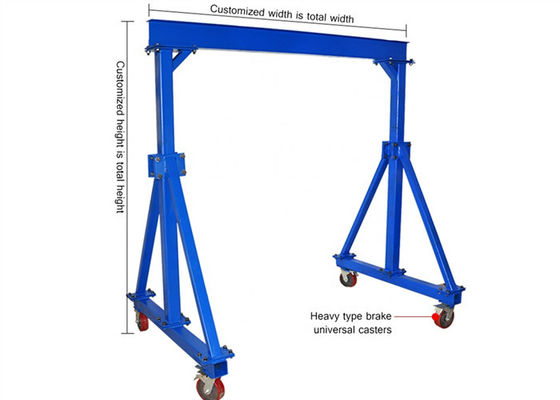

This is height adjustable simple gantry crane, using electric chain hoist as lifting mechanism, and its Unsupported height can be adjusted freely, with adjustment scale to ensure the height of both sides is consistent
The simple gantry crane lifting capacity is small, and the lifting capacity range is from 500 kg to 5000 kg. Due to its compact size, light weight and wide application range, it can meet the needs of many different occasions!
Drawing and Specification
|
Rated load(t)
|
Adjustable Height(m)
|
Span(m)
|
Beam Height(mm)
|
Motion Type
|
Height Range Instruction
|
|
0.5
|
2.6-3.8
|
3-9
|
140
|
Hand push type universal castor with brake device
|
According to the actual use requirements to increase the lifting height and height of the body
|
|
1
|
2.6-3.8
|
3-9
|
160
|
||
|
2
|
2.6-3.8
|
3-9
|
160
|
||
|
3
|
2.6-3.8
|
3-9
|
200
|
||
|
5
|
2.6-3.8
|
3-9
|
250
|
Product Details
Package and Delivery
Our Service
1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.
2. Strict quality control system, supervision the work to ensure the best crane for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers can be your side do the installation guide and training.
FAQ
1.Which industries do you service?
We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.
2.Which areas do you service?
We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.
3.Which cranes are most suitable for outdoors?
The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.
4.What international certificate does your crane passed?
Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.
5.What is the best crane for my needs?
We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
