| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Lifting Capacity: | 1t~12t, Customized | Outreach: | 2.5m~12m, Customized |
|---|---|---|---|
| Lifting Height: | 2~10m, Customized | Class: | European Design A5/2m, Option A3 |
| Power Source: | 3 Phase 380V 50hz | Color: | Customer Requirements |
| Descrption: | Travel Lift | Keyword: | Pillar Fixed Jib Boom Crane |
| Application: | Equipped With A Lifting Beam For Boat | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 50hz 10t Boat Jib Crane,3 Phase 380V Boat Jib Crane,Marina Pivoting Jib Crane |
||

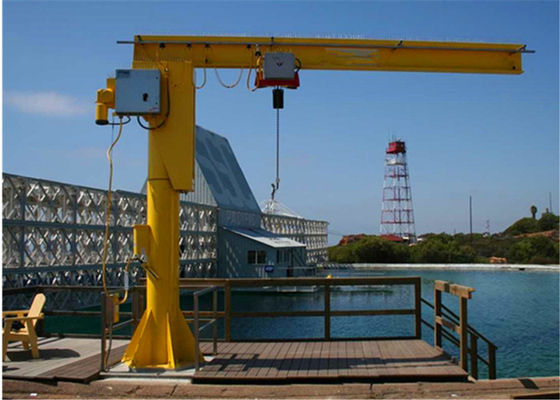

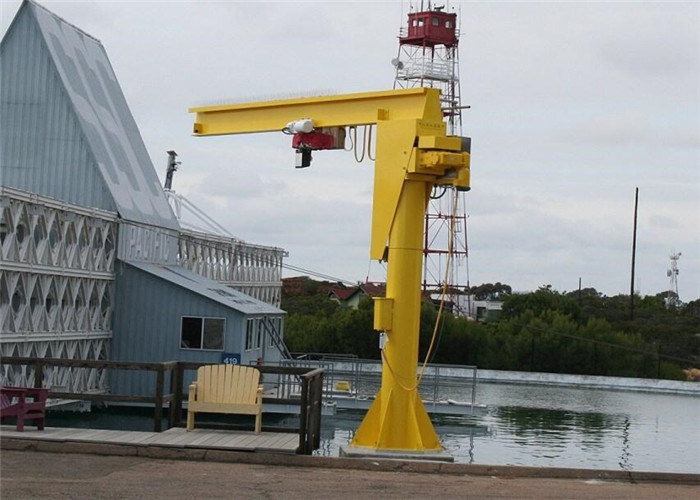

10t Boat Handling Machine Marina Boat Lifting Pivoting Jib Crane Price
Product Description
The working strength of cantilever crane is light. The crane is composed of a vertical column, a rotary arm driving device and an electric hoist. The lower end of the vertical column is fixed on the concrete foundation through a foot bolt, and the cantilever is driven by a cycloid pinwheel decelerating device. The electric hoist runs in a straight line from left to right on the cantilever I-beam and lifts heavy objects. The crane boom is hollow steel structure, light weight, large span, large lifting weight, economic and durable. The built-in walking mechanism adopts special engineering plastic wheel with rolling bearings, which has small friction force and light walking speed, and small structure size, which is especially conducive to improving the trip of the hook.
Drawing and Specification
| Load Capacity (ton) |
Outreach (m) |
Max. Lifting height (m) | Duty Class |
| 1 | 3~6 | 3~8 | A3 or A5 |
| 2 | 5~35 | 3~25 | A3 or A5 |
| 3 | 5~35 | 3~25 | A3 or A5 |
| 5 | 5~35 | 3~25 | A3 or A5 |
| 8 | 5~35 | 3~25 | A3 or A5 |
| 10 | 5~35 | 3~25 | A3 or A5 |
| 12 | 5~35 | 3~25 | A3 or A5 |
| Customizable | Customizable | Customizable | Customizable |
Mechanical Protection
- Protection roof, jib crane motor reducer, hoist , trolley in rest position
- Tropical zed hoist motor
- Thermal probe on hoist motor
- Motor in “H” class
Package and Delivery
1. Delivery time: within 3-5 months after deposit recived.
2. Packaging:
Wooden case for electric parts,motor,accessories, color cloth for main structure.
All parts will be loaded into 20ft or 40ft container. Or all parts will be loaded onto Bulk Cargo Ship after package if the length is beyond 12.0m
3. Load port : Qingdao/Shanghai/Xingang port
1.12 months warranty after installation and commissioning in addition to the human damage factors.
2.2 years spare-parts provided for better maintenances.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
