| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | MG |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 5t~100t, Customized | Jib Length: | 9m~63m, Customized |
|---|---|---|---|
| Lifting Height: | 9m~35m, Customized | Working Duty: | A5/A6/A7 |
| Hoisting Mechanism: | Hoist Electric | Power Source: | 3 Phase 380V 50hz Or Others |
| Color: | Customer Requirements | Control Method: | Cabin Control |
| Application: | Dry Dock, Port, Material Storage Yard, Etc. | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Feature: | Portal Crane | ||
| Highlight: | 10 Tons Level Luffing Portal Crane,A8 Dry Dock Portal Crane,Hoist Electric Shipyard Port Cranes |
||

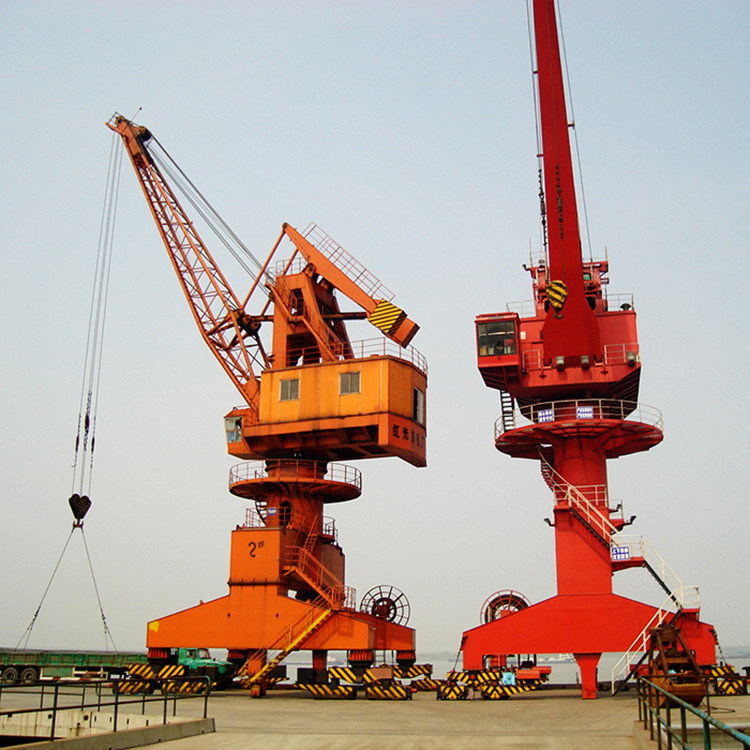

Portal Crane 10 Tons Level Luffing Portal Crane Dry Dock Portal Cranes
Product Description
Jib harbour portal crane for seaport are state-of-the-art, economical and flexible handling machines on rails. They are based on the well proven mobile harbour crane technology and can be easily integrated into existing or planned terminal infrastructures. Their strengths:Use on special-purpose quays for tough continuous-duty bulk handling Possibility of providing specific portal solutions in line with terminal requirements Modular construction Comparatively low total weight.
Drawing and Specification
| Spreader type | Hook | Grab | |
| Material handling | various goods | bulk cargo | |
| Capacity (under spreader) | 5.0 ～ 60ton | 5.0 ～ 50ton | |
| Lifting height | Above rail | 15 ～ 35m | 15 ～ 35m |
| Under rail | 9 ～ 20m | 9 ～ 18m | |
| Work Grade | A5, A6, A7, A8 | A5, A6, A7, A8 | |
| Outreach | 15 ～ 50m | 15 ～ 50m | |
| Span | 9.0 ～12m | 9.0 ～12m | |
| Standard Speeds | Hoisting with load | 10 ～ 25 m/min | 10 ～ 25 m/min |
| Hoisting without load | 15 ～ 35 m/min | 15 ～ 35 m/min | |
| Luffing | 15 ～ 55m/min | 15 ～ 55m/min | |
| Slewing | 0.8 ～ 2.0 r/min | 0.8 ～ 2.0 r/min | |
| Gantry travel | 20 ～ 30 m/min | 20 ～ 30 m/min | |
Features
1. The cabin is ergonomically designed for the operator, with customized controls and high visibility to improve efficiency and safety.
2. Components and walkways are inside structures wherever practical to improve safety for operators even in harsh weather conditions.
3. Real-time data about wind speed, for example, helps to ensure safe crane operation.
Product Details
Application
Package and Delivery
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
