Metallurgical Slings Ladle Crane Double Beam Overhead

Metallurgical Bridge Crane, Double Beam Overhead Crane, Metallurgical Slings, Ladle Crane

Safe Reliable Metallurgical Plant LDY Single Girder Beam Bridge Overhead Crane

Product Description

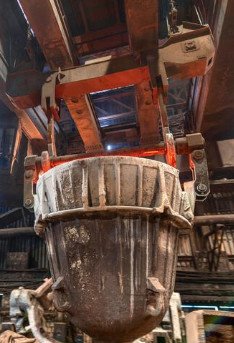

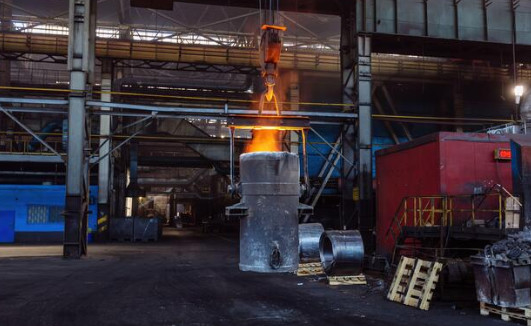

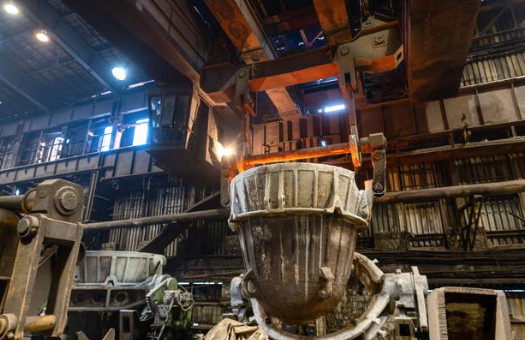

Metallurgical bridge crane, suitable for metal smelting workshop; Including frame fixing device, lifting mechanism, operating mechanism and operation room; The lifting mechanism, the running mechanism and the operation room are fixed on the frame fixing device; The frame fixing device comprises a fixed longitudinal beam fixed on both sides of the factory roof and a bridge whose two ends are respectively fixed on the fixed longitudinal beam 8; Two bridges are arranged in parallel; The inner side of the two bridges is fixedly provided with a cable guide frame, and the running mechanism comprises a trolley running mechanism and a cart running mechanism; The trolley running mechanism is fixed at the lower side of the fixed longitudinal beam 8, and the operation room is fixed at the bottom of the bridge to comprehensively control the operation and lifting of the crane; The beneficial effect of the utility model is that the utility model is suitable for the metal smelting workshop, a special crane for lifting molten metal, and has high temperature resistance strength.


​​Drawing and Specification




Main Features

1. Suitable to work in High temperature environment;
2. The crane is of work duty M5; hoisting mechanism adopts electric hoist special for metallurgy, whose work duty is M6; travelling mechanism is of M5 work duty;
3. Double Brakes (with Safety Brake). The safety brake does not work when the first brake work normally; but it will work automatically and instantly, when the lifting weight drops suddenly, because the first brake is broken, or other parts broken;
4. Double Hoisting Limit Switches. When the first limit switch is broken, the second one will work instantly.

5. There is overload limit switch.
6. There is high temperature heat protection system, reducing the thermal radiation from the heat source.
7. Electric cable is of high temperature resistance.
8. Steel wire rope is of high temperature resistance.
9. Electric motor is of protection Class H---high temperature resistance.


Advance Feature

1. Heavy lifting load
2. Frequency inverter speed control
3. Monitoring sensor control technology
4. Good cabin operation environment
5. Wholistic processing trolley frame
6. Fault monitoring and control


Production Workshop




Package and Delivery




Installation and Commissioning



Certificate

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.




FAQ

1. Q: What’s your MOQ?
A: 1 Set;

2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

5. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
