| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | Floating Dock Crane |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | Adjustable according to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per year |
| Capacity: | Optional Range From 5t To 40t. | Outreach: | Optional Range From 6 To 50m. |
|---|---|---|---|
| Rail Span: | 3.2m~6.0m | Application: | Shipyard, Floating Port, Drilling Platform |
| Color: | Customrer Decided | After Sales Service: | After Sales Service Provided |
| High Light: | 50m Portal Slewing Crane,50m Container Lifting Crane,CCS Portal Slewing Crane |
||

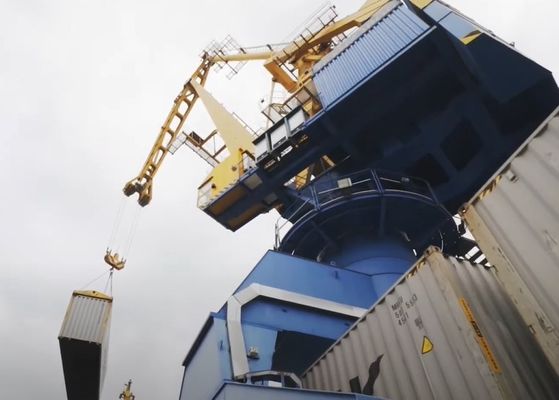

Portal Slewing Crane, lifting containers, with track and cable drum
Product Description
Portal cranes for loading and unloading: mainly used in ports and open stockyards, with grabs or hooks for loading and unloading. The lifting capacity generally does not exceed 25 tons, and does not change with the range. The working speed is high, so productivity is often an important indicator.
Portal cranes for shipbuilding: mainly used for ship berths, floating docks and loading sites, for hull splicing, equipment loading and other hoisting work, using hooks as spreaders. The rated lifting capacity is up to 300 tons, and the lifting capacity is correspondingly reduced when the range is large. There are multiple lifting speeds, and the lifting speed can be increased when the hoisting weight is light. Some working institutions are also equipped with micro-movement devices to meet installation requirements. The one with a large door seat height can meet the requirements of large lifting height and large-scale operation, but the working speed is low and the operation productivity is not high.
Portal cranes for construction installation: mainly used in hydropower stations for dam irrigation, equipment and prefabricated parts hoisting, etc., generally with hooks. The lifting capacity and working speed are generally between the first two types of cranes. It has the characteristics of good assembly, disassembly and transportation of the whole machine, large depth of lowering of the spreader, and good adaptability to temporary work and work on trestle bridges.
Specification
|
Load Capacity (ton) |
Outreach (m) | Lifting height above rail/under rail (m) |
Gauge (m) |
| 5 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 7 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 10 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 15 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 20 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 25 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 30 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 35 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 40 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| customizable | customizable | customizable | customizable |
Main Features
• Capacity 5t~40t, up to 50t
• Outreach 15m~50m, duty class A5
• Rail gauge 3m to 6m, to match dock
• Lifting height up to 35m above Rail
• Adapt to dock: heel ≤3°, trim ≤1°
• Certificate: CCS, BV, ABS or customized
Application
• Installed on both wall of Foloading dock
• For ship repair,rust removal, painting etc
• Run along the rail or fixed to cover dock
Advantages
1.PLC and Visual simulation system:
which make hoisting more simple and easy operation,realize fixed and pvikut digging.
2.Heavy digging control system:
which greatly improve dredging efficacy of the , make dredging work more smoothly and reduce drivers operating intensity.
3.Fixed dredging depth control system:
which greatly improve underwater dredging work quality,make dredging depth be fixed and avoid over dredging waste.
4.Satellite positioning dredging construction system:
Which will do timely determination of hull and grab position, rapidly and accurately display the excavating position of ship and grab trajectory, ensure high efficiency, high precision of the dredging engineering construction.
5.Mining depth and grab opening control system:
Our grab dredger is equipped with a data depth gauge and simulated bucket opening degree gauge , which indicating working depth and grab opening degree.
Related Products
Package and Delivery
Packaging:
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Shipping:
(1) If the size of whole crane are suitable for container ship, usually by container;
(2) If the size is too big, usually by bulk ship or by container after truncation;
(3) Transport ways are based on reducing cost for you and keep the crane performance.
Installation and Commissioning
Product Certificate
FAQ
1.Which industries do you service?
We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.
2.Which areas do you service?
We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.
3.Which cranes are most suitable for outdoors?
The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.
4.What international certificate does your crane passed?
Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.
5.What is the best crane for my needs?
We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
