| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | Floating Dock Crane |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | Adjustable according to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per year |
| Capacity: | Optional Range From 5t To 40t. | Outreach: | Optional Range From 6 To 50m. |
|---|---|---|---|
| Rail Span: | 3.2m~6.0m | Application: | Shipyard, Floating Port, Drilling Platform |
| Color: | Customrer Decided | After Sales Service: | After Sales Service Provided |
| High Light: | Floating Dock Crane 6.0m Span,shipbuilding crane 6.0m Span,SGS Floating Dock Crane |
||

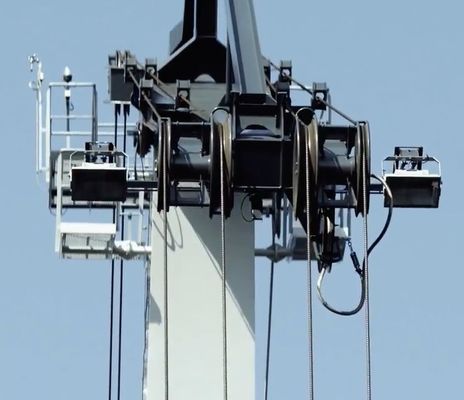

Floating Dock Crane, Better Cab Design, Shipbuilding & loading
Product Description
Our floating dock crane adopts the structure of four-link combined jib and cylindrical gantry. The slewing support device adopts large slewing bearings, which can adapt to the operation requirements of hooks and grabs, and can lift corresponding cranes in different working ranges. The load can be used for horizontal amplitude change and 360° rotation.
The hoisting, luffing, and slewing mechanisms can operate independently or in combination, and the whole machine can run in a straight line along the horizontally laid track. The hoisting, luffing, slewing and operating mechanisms all adopt AC frequency conversion speed regulation, and the whole machine adopts PLC control system, full frequency conversion stepless speed regulation and fault monitoring system.
Specification
|
Load Capacity (ton) |
Outreach (m) | Lifting height above rail/under rail (m) |
Gauge (m) |
| 5 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 7 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 10 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 15 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 20 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 25 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 30 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 35 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 40 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| customizable | customizable | customizable | customizable |
Main Features
• Capacity 5t~40t, up to 50t
• Outreach 15m~50m, duty class A5
• Rail gauge 3m to 6m, to match dock
• Lifting height up to 35m above Rail
• Adapt to dock: heel ≤3°, trim ≤1°
• Certificate: CCS, BV, ABS or customized
Application
• Installed on both wall of Foloading dock
• For ship repair,rust removal, painting etc
• Run along the rail or fixed to cover dock
Advantages
1.PLC and Visual simulation system:
which make hoisting more simple and easy operation,realize fixed and pvikut digging.
2.Heavy digging control system:
which greatly improve dredging efficacy of the , make dredging work more smoothly and reduce drivers operating intensity.
3.Fixed dredging depth control system:
which greatly improve underwater dredging work quality,make dredging depth be fixed and avoid over dredging waste.
4.Satellite positioning dredging construction system:
Which will do timely determination of hull and grab position, rapidly and accurately display the excavating position of ship and grab trajectory, ensure high efficiency, high precision of the dredging engineering construction.
5.Mining depth and grab opening control system:
Our grab dredger is equipped with a data depth gauge and simulated bucket opening degree gauge , which indicating working depth and grab opening degree.
Related Products
Package and Delivery
Packaging:
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Shipping:
(1) If the size of whole crane are suitable for container ship, usually by container;
(2) If the size is too big, usually by bulk ship or by container after truncation;
(3) Transport ways are based on reducing cost for you and keep the crane performance.
Installation and Commissioning
Product Certificate
FAQ
1.Which industries do you service?
We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.
2.Which areas do you service?
We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.
3.Which cranes are most suitable for outdoors?
The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.
4.What international certificate does your crane passed?
Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.
5.What is the best crane for my needs?
We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
