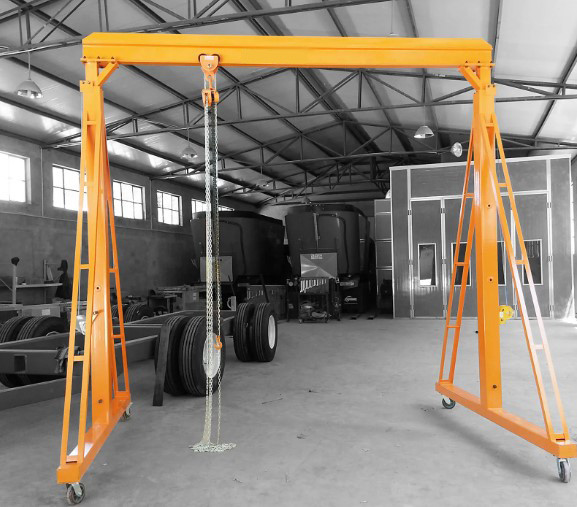

380V 50Hz 3Ph Workshop Portable Gantry Crane Differ Height 2m-10m Span

Workshop Portable Gantry Crane, Differ Height, 2m-10m Span,

Product Description

Rely on human propulsion to achieve small-scale movement. In general, the load capacity of the manual gantry crane is less than 2 tons, and the lifting mechanism can be an electric hoist or a chain hoist.

Hand-push gantry cranes are suitable for manufacturing molds, auto repair factories, mines, construction sites and occasions that require lifting. The biggest advantage of the mobile gantry is that it can be moved in all directions, can be quickly disassembled and installed, and has a small footprint, and can be transferred to another site for installation and use with a small truck.

The gantry hanger is affected by factors such as the place and place where it is used, the size and height of the hanging items, so almost every gantry hanger needs to be customized. The normal size is span 3M*height 3M. But it is generally difficult to apply, and it needs to be designed according to each customer's own situation, and then formulated.

Drawing and Specification

Main Features and Advantages
1. Lightweight, convenient, it can be manually installed on site
2. Only needs 4 bolts to make the 4 small parts together
3. Can complete the leg assembly within 2-3 minutes
4. 360 ° swivel caster for any position fasten
5. Available on all flat and bumpy floors
6. Simple structure, height and span can be adjusted
7. Very safe, and the trolley will not fall
8. Foldable, easy to store and transport
9. The side beams and legs are bolted to ensure stability of the crane

10. Corrosion-resistant, easy to clean, suitable for electroplating and clean room environment
11. It has got CE certification for overall safety, according to EN795 Class B standard design
12. Ergonomic design of the profiles, handles, etc.. And the operation is more secure
13. Lifting rated load 500kg-5000kg. Refer to technical parameters for specific reference
14. Various of sizes S / M / L / T standard configuration, can also be customized, components are interchangeable
15. If you need non-standard custom, please contact with our technical staff

Product Details

Package and Delivery

Our Service

1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.

FAQ

1.Which industries do you service?

We service many industries including Machinery, Metallurgy, Electric Power, Railway, Water Conservancy,Port, Aviation, Military, Auto, Shipbuilding, Petroleum, Chemical, Tabulation, Coal, Steel Fabricators, Pre-CastConcrete, Steel Warehouses, Marble and Stone and other fields.

2.Which areas do you service?

We have very big market in China local market, at same time, we have export our crane to all over the world,include European, Africa, Middle East, Asia, North American, South American and so on. Total more than 95 countries all over the world.

3.Which cranes are most suitable for outdoors?

The gantry crane range is often most suitable for outdoor type work. There are two types . the single girder gantry crane and double girder gantry crane.

4.What international certificate does your crane passed?

Our crane has passed CE, ISO, GOST , SGS, TUV, BV, and so on.

5.What is the best crane for my needs?

We have an extensive range of quality cranes and acessories including Overhead crane, Gantry crane, Jib crane, Electric hoist and related products. Also we have advantaged product used in special industrial such as Casting crane, Magnet crane, Grab crane used in steel mill, And Click on the above links to take you to the specific product page. If you still require further information please contact us.
