| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | FR |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 5-100t, Customized | Lifting Height: | 5-60m, Customized |
|---|---|---|---|
| Span: | 5-80m, Customized | Lifting Mechanism: | Electric Trolley Or Hoist |
| Power Source: | 3 Phase 380V 50hz | Color: | Customer Requirements |
| Control Method: | Pendent Button,wireless Remote,cabin Control | Application: | Workshops, Factories, Indoor & Outdoor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| Highlight: | 100t RTG Gantry Crane,5t RTG Gantry Crane,FR Model RTG Crane |
||

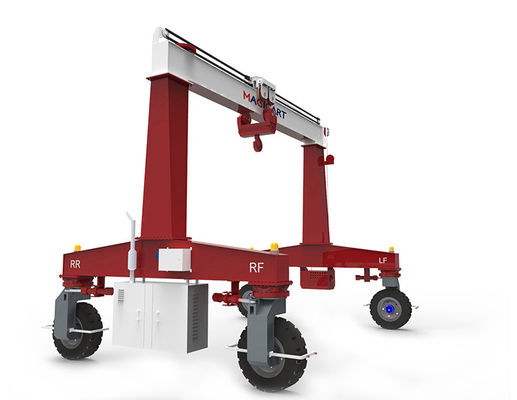

Fast Carrier FR Model RTG Crane 5-100t Rubber Tired Single Beam Gantry Crane
Product Description
The rubber tire gantry crane (RTG crane) is a convenient and efficient material handling solution, usually used for moving and stacking containers. Its main components include crane frame, hoisting mechanism, trolley walking mechanism and so on. The trolley of our rubber tire gantry crane is equipped with lifting tools and travels along the track set on the main beam to load, unload and stack containers. The crane with tires travels around the stockyard or other workplaces, and can move flexibly from one workplace to another. It is an ideal solution for outdoor workplaces such as ports, docks, freight yards, shipyards, railway terminals, etc., suitable for various applications.
Drawing and Specification
| Model | Load Capacity | Clear Height | Clear Width |
| FR 5 | 5T | 3m | 3m |
| FR 10 | 10T | 2m~5m | 3m~6m |
| FR 20 | 20T | 2m~5m | 3m~6m |
| FR 30 | 30T | 2m~5m | 3m~6m |
| FR 40 | 40T | 2.5m~7.5m | 3m~8m |
| FR 50 | 50T | 2.5m~7.5m | 3m~8m |
| FR 70 | 70T | 2.5m~9m | 3m~10m |
| FR 90 | 90T | 2.5m~9m | 3m~10m |
| FR 100 | 100T | 2.5m~9m | 3m~12m |
Safety Fatures:
1. Automatic rectify deviation control
2. Weight overload protection device
3. Top quality polyurethane buffer
4. Phase protection
5. Lifting limit switch,cross traveling limit switch,long traveling limit switch
6. Voltage lower protection function
7. Emergency stop system
8. Current overload protection system
9. Lighting system
10. Audio and video alarm system
Accessories
Application
Package and Delivery
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
