| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | QDY |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 50t, Customized | Span: | 15-110m, Customized |
|---|---|---|---|
| Lifting Height: | 8-110m, Customized | Painting Color: | Customized |
| Condition: | New | Main Electrical Parts: | Schneider Brand |
| Power Supply: | 3P 220--440 V/50hz60HZ | Lifting Mechanism: | QD Winch Trolley |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | MAGICART Ladle foundry crane,50T Ladle foundry crane,MAGICART 50T Ladle Foundry Crane |
||
Product Description

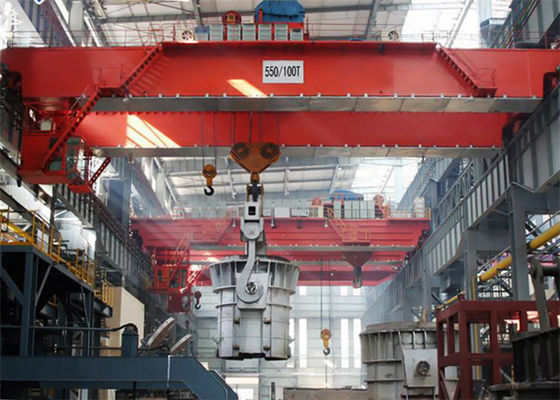

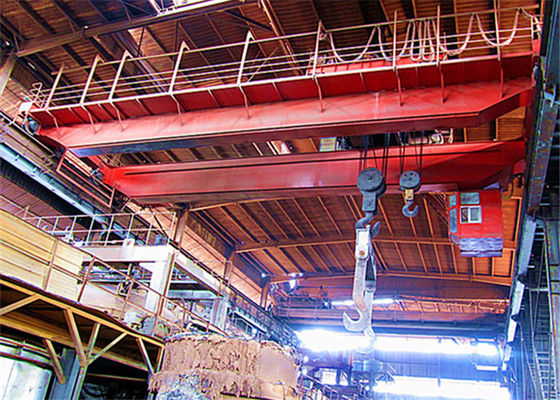

It is a kind of heavy duty crane ,it is widely used in plants, warehouses, materials stocks to lift goods or materials. This crane mainly consists of strong bridge beams,crane traveling mechanism, electric winch trolley and electric system,and could be classified into several working duties,e.g.A5,A6,A7,according to the working frequency and pure working time.
Main girder
The main girder includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard. The toughness and strength are perfect combination. It applies shot blasting and high quality painting. Well-chosen choose steel plate, advanced welding technology and equipment.
Winch Trolley
The trolley are assembled with motor, reducer, brake, trolley frame, drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism. The trolley is strictly designed according to the application and working environment.
Drawing and Specification
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) |
| 1 | 5~35 | 5~25 |
| 3 | 5~35 | 5~25 |
| 5 | 5~35 | 5~25 |
| 10 | 5~35 | 5~25 |
| 12.5 | 5~35 | 5~25 |
| 15 | 5~35 | 5~25 |
| 16 | 10~50 | 5~25 |
| 20 | 10~50 | 5~35 |
| 25 | 10~50 | 5~35 |
| 32 | 10~50 | 5~35 |
| 50/10 | 10~50 | 5~35 |
| 70 | 10~50 | 5~35 |
| 100 | 10~50 | 5~35 |
| 120 | 10~50 | 5~35 |
| 150 | 10~50 | 5~35 |
| 200 | 15~50 | 10~35 |
| 250 | 15~50 | 10~35 |
| 300 | 15~50 | 10~35 |
| 350 | 15~50 | 10~35 |
| 400~800 | 15~50 | 10~35 |
| Customizable | Customizable | Customizable |
Safety Device
Product Details
Package and Delivery
FAQ:
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
