| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | QDY |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Load Capacity: | 100t, Customized | Span: | 15-110m, Customized |
|---|---|---|---|
| Lifting Height: | 8-110m, Customized | Painting Color: | Customized |
| Condition: | New | Main Electrical Parts: | Schneider Brand |
| Power Supply: | 3P 220--440 V/50hz60HZ | Lifting Mechanism: | QD Winch Trolley |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 100T Ladle Foundry Overhead Crane,Foundry Overhead Crane Double Girder,QDY Casting Ladle Crane |
||
Product Description

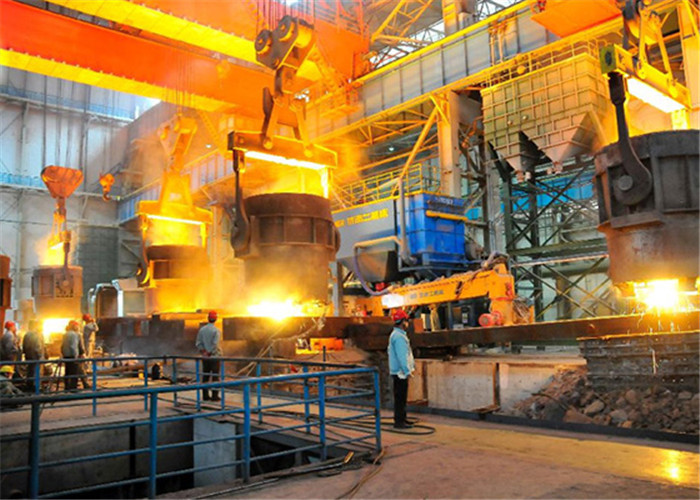

QDY Double Girder Ladle crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.
Drawing and Specification
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) |
| 1 | 5~35 | 5~25 |
| 3 | 5~35 | 5~25 |
| 5 | 5~35 | 5~25 |
| 10 | 5~35 | 5~25 |
| 12.5 | 5~35 | 5~25 |
| 15 | 5~35 | 5~25 |
| 16 | 10~50 | 5~25 |
| 20 | 10~50 | 5~35 |
| 25 | 10~50 | 5~35 |
| 32 | 10~50 | 5~35 |
| 50/10 | 10~50 | 5~35 |
| 70 | 10~50 | 5~35 |
| 100 | 10~50 | 5~35 |
| 120 | 10~50 | 5~35 |
| 150 | 10~50 | 5~35 |
| 200 | 15~50 | 10~35 |
| 250 | 15~50 | 10~35 |
| 300 | 15~50 | 10~35 |
| 350 | 15~50 | 10~35 |
| 400~800 | 15~50 | 10~35 |
| Customizable | Customizable | Customizable |
Working Condition
Safety Feature
Due to a high risk level, casting are designed with special safety features to ensure the efficiency and safety of crane system. The safety features of Ladle Cranes are as follow:
Product Details
Package and Delivery
FAQ:
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
