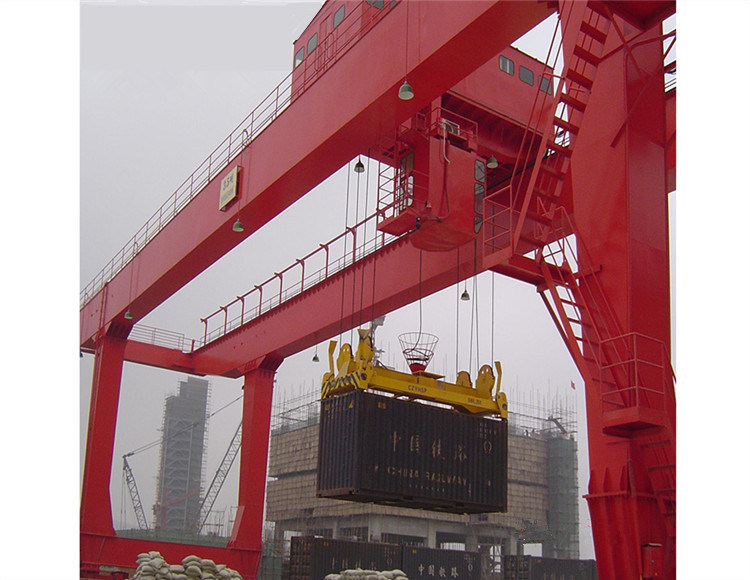

RMG Type Ground Travel Rail Mounted Container Gantry Crane With Spreader
Product Description
Rail mounted ground rail gantry crane (RMG) is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
Drawing and Specification
|
Capacity
(under the spreader) (t)
|
30.5 |
35 |
40.5 |
50 |
| Span (m) |
35 |
35 |
35 |
35 |
| Cantilever length (m) |
12 |
12 |
12 |
12 |
| Base (m) |
16 |
16 |
16 |
16 |
| Lifting height (m) |
15.4 |
15.4 |
18.2 |
18.2 |
|
Speed
(m/min)
|
Hoisting |
12 |
18 |
18 |
18 |
| 24 |
36 |
36 |
36 |
| Trolley travelling mechanism |
60 |
60 |
70 |
70 |
| Crane travelling mechanism |
45 |
45 |
45 |
45 |
| Total Power (KW) |
200 |
230 |
255 |
300 |
| Max. working load of wheel (KN) |
260 |
265 |
280 |
300 |
| Crane rail |
QU70 |
QU70 |
QU70 |
QU80 |
Advantage
1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Conductor power supply: Cable Reel or busbar.
8.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications
Attention
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
Main Parts of Rail Mounted Ground Rail Gantry Crane
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
