| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | MG |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 100-1000t, Customized | Span: | 8-32m, Customized |
|---|---|---|---|
| Lifting Height: | 20-75m, Customized | Class: | A1, A2, A3 |
| Crane Running Speed: | 19.4m/min | Core Components: | Bearing, Gearbox, Motor, Gear |
| Color: | Customer Requirements | Power Source: | 380V 50Hz 3Ph Or Customized |
| Application: | Hydropower Station, Dam, Shipyard | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 1000t Rail Gantry Crane,500t Hydropower Station Rail Gantry Crane,Double Girder Dam Gate Crane |
||

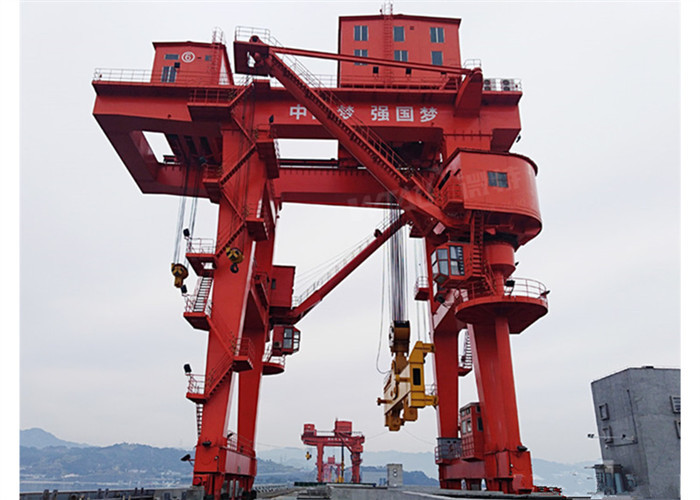

500t Hydropower Station Gantry Crane Double Girder Dam Gate Crane
Product Description
The Hydropower gantry crane is the crane which use the A-frame to support and keep it standing on the rail track of ground and bases. It could travel along the rail track and train and cars could through under the A-frame. Portal crane have hoisting,slewing,luffing traveling mechanism,there are lift and tilt frame beam or combination beam and control room on the spiral parts.The Hydro-power gantry crane has some additional device: belt conveyor to improve the working capacity rate of the crane to grab the bulk cargo. There are also motor protection device,overload stopper device and crane rail clamp etc.safety device.
Drawing and Specification
| Lifting Weight (t) | 100 | 125 | 200 | 250 | 320 | 350 | 400 | 450 | |
| Group Classification | A2,A3 | ||||||||
| Span (m) | 16 | 13 | 12 | 8.5 | 14 | 12 | 12 | 8 | |
| Lifting Range (m) | Main Lifting Mechanism | 20 | 90 | 50 | 70 | 69 | 80 | 90.5 | 65 |
|
Working Speed (m/min) |
Main Lifting Mechanism | 2.8 | 2.16 | 2.06 | 2.2 | 2.5 | 2.2 | 2.22 | 2.2 |
| Traversing Mechanism | 6.2 | 8.18 | 5.38 | 4.86 | 6 | 4.25 | 2.08 | 2.08 | |
| Traveling Mechanism | 22 | 23.3 | 22 | 22.2 | 20 | 14.85 | 21.6 | 19.5 | |
|
Main Dimensions (mm) |
H | 29300 | 30142 | 29395 | 25530 | 30500 | 31258 | 30452 | 30599 |
| B | 1600 | 15937 | 14300 | 14300 | 14381 | 18085 | 13800 | 12800 | |
| b | 2500 | 2500 | 2800 | 2500 | 3000 | 3750 | 1386 | 2400 | |
| W | 9000 | 9000 | 8500 | 9200 | 9000 | 9200 | 9600 | 8500 | |
| w1 | 960 | 960 | 960 | 960 | 960 | 1100 | 1100 | 1100 | |
| w2 | 1100 | 1100 | 1100 | 1100 | 1100 | 1800 | 1800 | 1800 | |
| H1 | 1200 | 800 | 815 | 815 | 880 | 3356 | |||
| H2 | 13172 | 13172 | 10055 | 7680 | 11330 | 13758 | 18800 | 13428 | |
| h | 15000 | 15000 | 18000 | 15370 | 15500 | 2300 | 16500 | 15000 | |
| h1 | 13000 | 13000 | 22000 | 16000 | 12500 | 15000 | 16500 | 12000 | |
| L | 13000 | 13000 | 12000 | 9000 | 9000 | 7550 | 6000 | 10000 | |
|
Max. Wheel Load (KN) |
P1 | 550 | 6O2 | 550 | 480 | 740 | 865 | 975 | 910 |
| P2 | 485 | 500 | 480 | 480 | 620 | 645 | 805 | 910 | |
| Total Motor Power (KW) | 104.5 | 104.5 | 241 | 270 | 271 | 329.5 | 364 | 376.5 | |
| Power Supply | 3-Phase AC 380v 50Hz | ||||||||
Advantages
1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature;
2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc;
3. Hook: Finest steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life;
5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Chint, Schneider or Siemens etc.
Features
1.Widly used in hydropower station, river and water conservancy facilities.Features:
2.Especially for FLAT/SLUICE GATE hoisting and lowering.
3.Single or double lifting points on optional.
4.Hoisting slings is wire rope, pulley block falling from drums;
5.Electric motorized, Centralized drive or individual drive.
6.Manual drive assemblied when electric fail.
7.Overload limiter, height indicator are all included. etc.
Package and Delivery
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by Woven bag.
3.Shipped by Conatiners or Bulk Ship
Installation and Commissioning
Product Certificate
Our Factory
FAQ
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from cranes accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
