Detail Information

Capacity:	10-100t, Customized	Span:	18-35-m, Customized
Lifting Height:	10-20m, Customized	Lifting Mechanism:	Electric Winch Trolley
Main Electrical Parts:	Siemens Or Chint Brand	Core Components:	PLC, Bearing, Gearbox, Motor, Gear
Power Source:	3 Phase 380V 50hz	Advantages:	Advanced Machining And Processing Equipments
Application:	Railway Station, Port, Logistics Park, Etc.	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	Carriage Gantry Crane , Mobile Container Gantry Crane , ISO Container Gantry Crane

Product Description

Mobile Container Carriage Gantry Crane CE ISO RMG Type Container Gantry Crane

Product Description

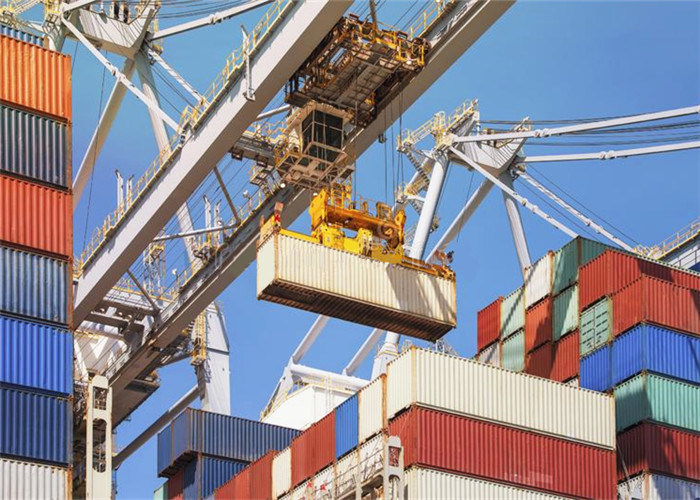

Rail mounted container gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.The crane is equipped with appropriate flexible hydraulic container spreader, which is connected to trolley through the upper frame and wire rope system. And the hydraulic power comes from spreader itself, and we just provide the power supply and communication.

Drawing and Specification

Mobile Container Carriage Gantry Crane CE ISO RMG Type Container Gantry Crane 0

Load Capacity (ton)	Span /Rail Gauge (m)	Max. Lifting height (m)	Duty Class
10	15~35	3~25	A5 or A3
16	15~35	3~25	A5 or A3
20	15~35	3~25	A5 or A3
32	15~35	3~25	A5 or A3
36	15~35	3~25	A5 or A3
40	15~35	3~25	A5 or A3
50	15~35	3~25	A5 or A3
Customizable	Customizable	Customizable	Customizable

Selection Guide

Depending on the constitution of main girder, outriggers and anti-sway device, container rail mounted gantry crane can be divided into different types.
1. Double cantilever gantry crane has big room between its outriggers for containers to pass through. Usually opening widely at upper parts to form a shape of U and combining with the girder forming a shape of N.
2. Non-cantilever crane has a simple structure because of containers do not need to pass through the room between its outriggers.

Rail Container Crane Features

1. Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
2. Electrical drive of main working mechanism is equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
3. The crane has a monitoring and management system. It has the function of data collection, analysis, management, and fault diagnosis and is also able to deliver the main parameters and operating conditions to the electrical room, cabin and control centre for monitoring and control.

4. Compared with ship-to-shore gantry crane, the trolley of Rail Mounted Gantry Crane travels at a lower speed and usually equipped without anti-sway stabilizer, while it will be equipped with anti-sway device if users need it for reducing operation stress and improving production efficiency. For rope type lifting mechanism, increasing the rope damp is a usual way to accomplish stabilization. And for rigid type lifting mechanism, its own rigid components are available to accomplish stabilization.

Related Products

Packing and Shipping

词性	翻译

1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion;
2.Other parts are packed as standard or as your requirements

Mobile Container Carriage Gantry Crane CE ISO RMG Type Container Gantry Crane 2

Mobile Container Carriage Gantry Crane CE ISO RMG Type Container Gantry Crane 3

FAQ

1. What's the information should I provide when inquiry? More details or drawings, better.

A: Lift capacity B: Span C: Lift height D: Container Size E: power source or other specials you give us will be more appreciated.

2. How many operating methods for my selection? Standard operating methods:

A: remote control with push buttons B: cabin(space capsule seat) control with joystick. Choose any type as you like.

3. Can this type work in hazardous environment?

A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

4. Can you provide the serious lifting tools?

A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

5. How can we install the crane?

A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

6. Safety device

A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.

Tag:

Place of Origin:	Henan, China
Brand Name:	Magicart
Certification:	CE, ISO, SGS, GOST, BV
Model Number:	RMG

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	High quality plywood crate and plastic woven cloth
Delivery Time:	According to customer needs
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000 sets per year
