L Type Single Beam Rail Travelling Gantry Crane For Outdoor Or Warehouse

Basic Information
Place of Origin: Henan, China
Brand Name: Magicart
Certification: CE, ISO, SGS, GOST, BV
Model Number: MG
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: High quality plywood crate and plastic woven cloth
Delivery Time: 30000 sets per year
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: According to customer needs
Detail Information
Capacity: 5~800t, Can Be 2 Trolley Or More Span: 5m~60m, Customized
Lifting Height: 5m To 110m, Customized Class: European Design A5, Option A6/A7
Color: Customer Requirements Control Method: Cabin Control
Power Source: 380V 50Hz 3Ph Or Customized Core Components: Bearing, Gearbox, Motor, Gear
Application: Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacture, Etc. After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

Rail Travelling Gantry Crane

,

Single Beam Rail Travelling Gantry Crane

,

L Type Steel Rail Gantry Crane


Product Description

L-Type Single Beam Rail Travelling Gantry Crane For Outdoor Or Warehouse Use



Product Description



Outdoor track mounted L type steel pipe handling electric trolley gantry crane. The electric trolley gantry crane is a mid –light type gantry crane, equipped with electric and crane hooks, with the obvious features of “ L” shape legs, which makes the crane more convenient for handling cargo with long length, such as, steel pipe, etc.





​​Drawing and Specification

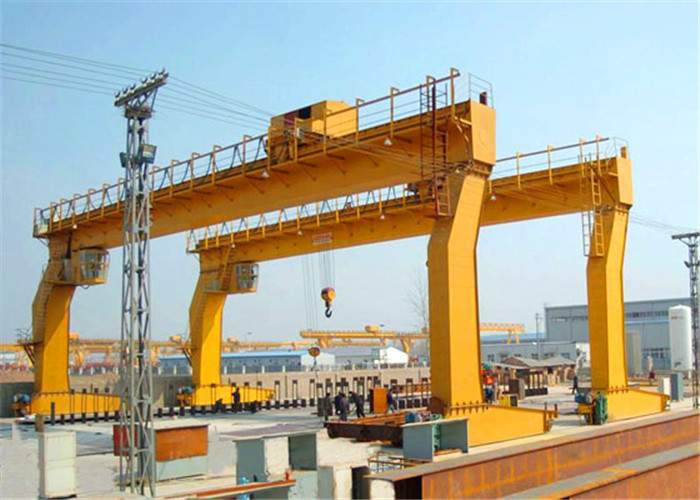

L Type Single Beam Rail Travelling Gantry Crane For Outdoor Or Warehouse 0

Load Capacity (ton)

Span /Rail Gauge

(m)

Max. Lifting height-H2

(m)

5 5~35 5~25
10 5~35 5~25
16 10~50 5~25
20 10~50 5~35
25 10~50 5~35
32 10~50 5~35
50/10 10~50 5~35
70 10~50 5~35
100 10~50 5~35
120 10~50 5~35
150 10~50 5~35
200 15~50 10~35
250 15~50 10~35
300 15~50 10~35
350 15~50 10~35
400~800 15~50 10~35
Customizable Customizable Customizable





Product Features



1. Simple and compact structure, steady performance.

2. Easy to install and high efficiency.

3. Overload, low voltage protective device.

4. Pendent control and remote control.

5. Easy maintenance.



Safe Features

1. Crane traveling limit switch

2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Emergency stop function
7. Rain cover for outside hoist, driving units, electrical cubicle.
8. Warning indicator: flashing lights and warning sound.
9. Wireless infra-detector for anti-collusion





Related Product

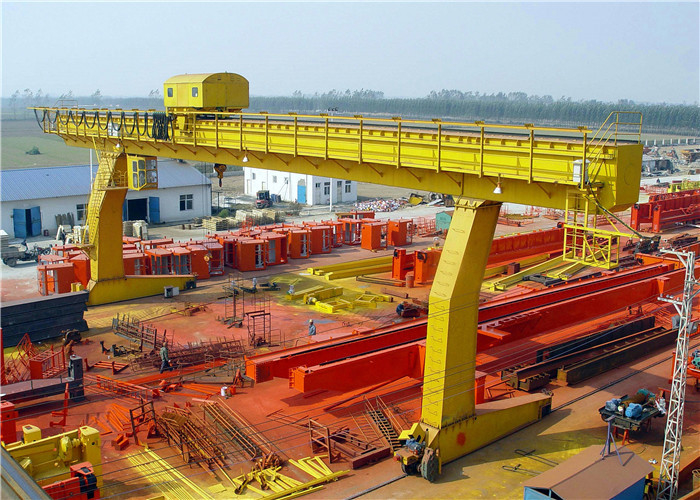

L Type Single Beam Rail Travelling Gantry Crane For Outdoor Or Warehouse 1





Packaging and Shipping



L Type Single Beam Rail Travelling Gantry Crane For Outdoor Or Warehouse 2





FAQ



1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
