| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | MG |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | 30000 sets per year |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | According to customer needs |
| Capacity: | 5~800t, Can Be 2 Trolley Or More | Span: | 5m~60m, Customized |
|---|---|---|---|
| Lifting Height: | 5m To 110m, Customized | Class: | European Design A5, Option A6/A7 |
| Application: | Outdoor/Indoor | Color: | Customer Requirements |
| Control Method: | Cabin Control | Power Source: | 380V 50Hz 3Ph Or Customized |
| Core Components: | Bearing, Gearbox, Motor, Gear | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | Rail Track Gantry Crane,100ton Gantry Crane,60m Span Rail Gantry Crane |
||

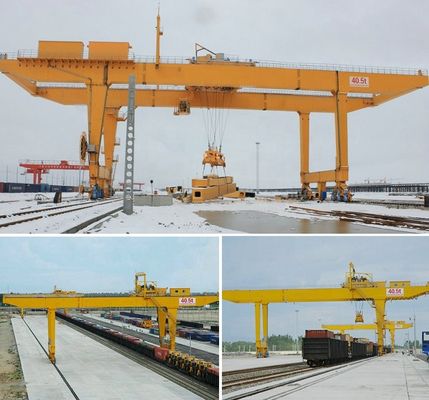

100ton 120t 200 ton 250 ton 300 ton 400 ton 500 ton Gantry Crane with Rail Track
Product Description
Outdoor Or Indoor Track Mounted Electric Trolley Double Girder Gantry Crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose
Drawing and Specification
| Load Capacity (ton) |
Span /Rail Gauge (m) |
Max. Lifting height-H2 (m) |
| 5 | 5~35 | 5~25 |
| 10 | 5~35 | 5~25 |
| 16 | 10~50 | 5~25 |
| 20 | 10~50 | 5~35 |
| 25 | 10~50 | 5~35 |
| 32 | 10~50 | 5~35 |
| 50/10 | 10~50 | 5~35 |
| 70 | 10~50 | 5~35 |
| 100 | 10~50 | 5~35 |
| 120 | 10~50 | 5~35 |
| 150 | 10~50 | 5~35 |
| 200 | 15~50 | 10~35 |
| 250 | 15~50 | 10~35 |
| 300 | 15~50 | 10~35 |
| 350 | 15~50 | 10~35 |
| 400~800 | 15~50 | 10~35 |
| Customizable | Customizable | Customizable |
Product Configuration
Features
1. Simple structure, Easy installation.
2. Good usability and high performance efficiently.
3. Low and easy maintenance.
4. Standardized, generalized and serialized parts.
5. Lifting goods in factories, stations, docks, construction sites, hydropower stations, and shipbuilding.
6. Composed of five parts: box traveling bridge, cart traveling bridge, trolley, driver's cab and electrical system.
7. The trolley uses flexible cables to conduct electricity, and all operations are controlled in the driver's cabin.
Packaging and Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolley/winch are packed by plastic woven cloth.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
Installation and Maintenance
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
