| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | Magicart |
| Certification: | CE, ISO, SGS, GOST, BV |
| Model Number: | DB and BS and F |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 sets per year |
| Capacity: | 10-1000t | Lifting Height: | 21 |
|---|---|---|---|
| Span: | 11-21 | Lifting Mechanism: | Hydraulic System |
| Crane Feature: | Mobile Gantry Crane | Color: | REB AND WHITE |
| Control Method: | Cabin Control | Power Source: | Hydraulic OR Electric OR Mechanical |
| Application: | Workshops, Factories, Indoor & Outdoor | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 10 ton mobile gantry crane,high stability triangular mobile gantry crane |
||

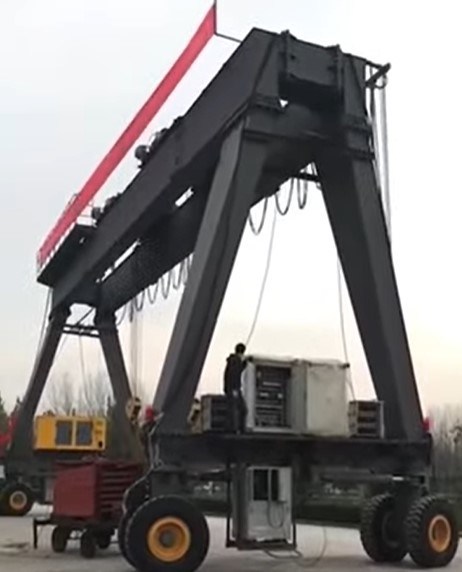

Triangular Mobile Gantry Crane, Huge Width, High Stability
Product Description
The RTG crane offers excellent maneuverability, thanks to its rubber tires and agile steering system. It can navigate tight spaces and maneuver with precision, making it ideal for congested container yards or areas with limited access. The crane's ability to move smoothly and accurately enhances operational efficiency and reduces the risk of accidents or damage to containers or surrounding structures.
Drawing and Specification
| Load Capacity (t) | 10 | 20/5 | 50/10 | 100/50 | 160/30 | |||||||||||||||
| Lifting Height (m) | 12 | 9.8/10 | 12/16 | 15/25 | 18/30 | |||||||||||||||
|
Speed (m/min) |
Crane lifting mechanism | 39.56 | 40.1 | 47.12 | 47.12 | 47.3 | 20 | 20 | ||||||||||||
| Trolley lifting mechanism | 43.7 | 44.6 | 38.5 | 20 | 20 | |||||||||||||||
| Lifting mechanism | 9.4 | 7.2/19.5 | 7.68/19.8 | 3/5 | 3.5/7.5 | |||||||||||||||
|
Rotation Speed (m/min) |
Crane lifting mechanism | 940 | 945 | 712 | 712 | 945 | 725 | 725 | ||||||||||||
| Trolley lifting mechanism | 908 | 908 | 940 | 725 | 960 | |||||||||||||||
| Lifting mechanism | 700 | 715/962 | 560/964 | 725 | 585/725 | |||||||||||||||
| Span (m) | 18 | 22 | 26 | 30 | 35 | 22 | 30 | 30 | 35 | 22 | 26 | 30 | 35 | 40 | 22 | 26 | 30 | 35 | 40 | |
| Max. wheel pressure (KN) | 235 | 259 | 275 | 316 | 325 | 275 | 285 | 413 | 500 | 268 | 294 | 325 | 355 | 400 | 466 | 498 | 573 | 580 | 605 | |
Safety Devices
1. Overload Limiter ; Limit Switch (Lifting and Traveling) ; Short-circuit protection.
2. Interlock protection device ; Under-voltage protection ; Buffer ; Zero protection.
3. Rail tongs, Anchor device and Motor overload protection.
4. Rail clear plate and e mergency stop system.
5. Protective cover and c urrent overload protection system.
6. Bus Bar prevent plate and s ecurity chain protection.
7. Anti-collision device and g round protection.
Package and Delivery
Installation and Commissioning
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
