| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | MAGICART |
| Certification: | CE, ISO, GOST, |
| Model Number: | FR，F，DB，BS |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | High quality plywood crate and plastic woven cloth |
| Delivery Time: | According to customer needs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sets per year |
| Capacity: | 10t To 100t , The Customer Choice | Span: | 15meters To 50meters, The Customer Choice |
|---|---|---|---|
| Lifting Heigh: | 3 Meters To 40 Meters, The Customer Choice | Class: | A3~A8 |
| Color: | Customrer Requirements | Application: | Outdoors Like Warehouse,Precast Yard, Shipyard |
| Server: | Customized Specialist Consultance, Personal | Vessel: | All Kinds Of Seaport |
| High Light: | Easy Mobile Gantry Cranes,Fast Mobile Gantry Cranes,Material Handling Mobile Gantry Cranes |
||

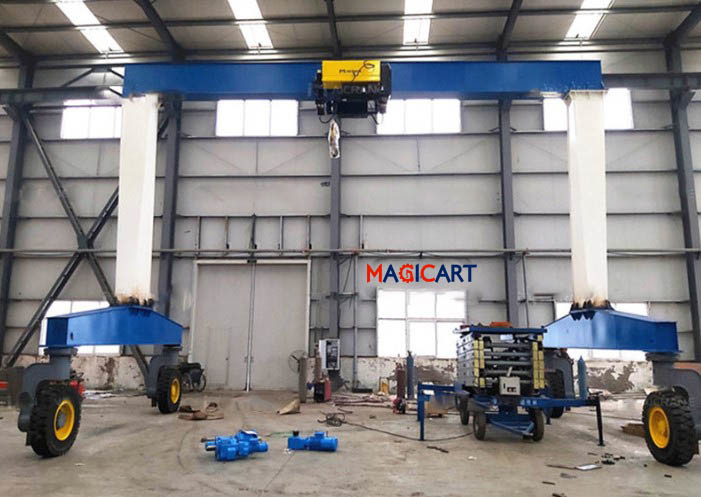

Experience Easy and Fast Material Handling with Mobile Gantry Cranes
Product Description

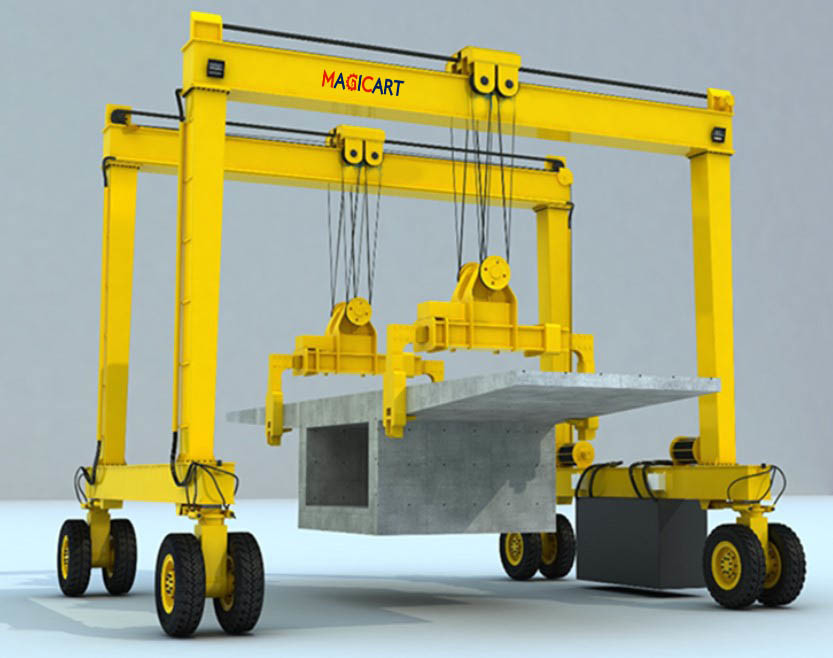

The rubber-tired gantry crane can realize a variety of modes such as straight travel, diagonal travel, horizontal travel, in-situ rotation, Ackerman steering, etc.Crane traveling mechanism adopt to structure of wheel and can achieve 360ºC turn and run diagonally.
It has mobility, flexibility, adaptability, high work efficiency, small size occupation area and do not need to lay the rail which are particularly suitable for beam factories and port with horizontal layout.
The crane mainly consists of main beam, support leg, hoisting mechanism, tire walking and braking system, steering mechanism, power system, electrical system, hydraulic system, hydraulic transmission system, cab, control system, safety device, etc.
Drawing and Specification
|
Advantages
• Lightweight body, Low purchase cost
• Low power consumption & operating cost
• With hydraulic clamp to prevent sliding
• With anti-tipping to prevent typhoons
Product Details
Application
Package and Delivery
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
